2021. 8. 5. 09:28 Angular/Concept

Nx.dev 기반개발에서 Angular 모듈을 Router기반으로 Lazy Loading하기와 Router를 사용하지 않고 Lazy Loading하는 방법에 대해 알아보자. 알단 Lazy Loading 설정을 하게되면 Angular 컴파일시에 자동으로 모듈단위 Code Splitting하여 번들링한다. 따라서 필요한 시점에 필요한 파일만 다운로드를 받기때문에  TTI(Time ot interactive)시간 즉, 애플리케이션 응답성능을 높일 수 있다. 참고로 Webpack 5 (핸재 beta) 에서 Federation Module 개념을 구현하였는데, Angular에서 이와 비슷한 기능을 Angular Module단위 개발로 제공한다.



NX 환경 설정

  • NodeJS v12.* 사용
  • @angular/cli와 @nwrl/ci 설치
  • create-nx-workspace 이용하여 nx 기반 환경 생성
  • yarn통한 node modules 설치
// NVM 설치 (https://github.com/nvm-sh/nvm)
$ nvm install 12.16.2
$ nvm alias default 12.16.2
$ nvm use 12.16.2

// 최신버전들 설치
$ npm i -g @angular/cli@latest
$ npm i -g @nrwl/cli@latest
$ npm i -g yarn@latest
$ npm install typescript@3.8.3 --save-dev --save-exact

// create-nx-workspace
$ npx create-nx-workspace@latest
  ? Worspace name   demo
  ...
$ cd demo
$ yarn install





Router 를 통한 Lazy Loading

  • nx 명령을 통해 Lazy loading할 library를 생성한다.
  • nx 명령을 통해 Lazy loading되어 보여질 component를 생성한다.
  • libs/lazyview/src/lib/lazyview.module.ts 에 RouterModule.forChild 설정
  • lazyview모듈을 로딩하는 "app-container" 애플리케이션의 tsconfig.app.json에 "include" path 설정
  • apps/app-container/src/app/app-routing.module.ts 안에 loadChildren 을 통해 lazyview 모듈을 import 한다.

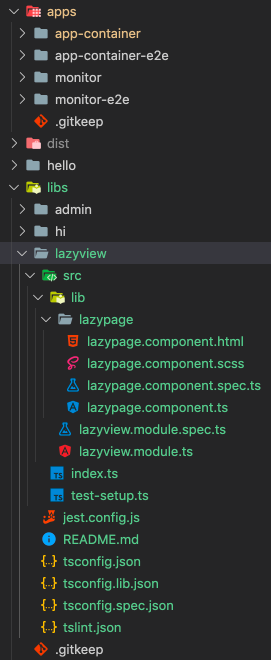

libs/lazyview 밑에 라이브러리 생성

// 1) libs/lazyview 라이브러리 생성 - 라이브러리는 모듈단위
$ nx g lib --routing --lazy lazyview


// 2) 컴포넌트 생성
$ nx g c lazypage --project=lazyview


// 3) libs/lazyview/src/lib/lazyview.module.ts에 forChild 설정
import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';
import { RouterModule } from '@angular/router';
import { LazypageComponent } from './lazypage/lazypage.component';
@NgModule({
    imports: [
        CommonModule,

        RouterModule.forChild([
            { path: '', pathMatch: 'full', component: LazypageComponent }
        ]),
    ],
    declarations: [LazypageComponent],
})
export class LazyviewModule {}


// 4) apps/app-container/src/tsconfig.app.json 에 include/exclude 설정
{
    "extends": "./tsconfig.json",
    "compilerOptions": {
        "outDir": "../../dist/out-tsc",
        "types": []
    },
    "include": ["**/*.ts", "../../libs/lazyview/src/index.ts"],
    "exclude": ["src/test-setup.ts", "**/*.spec.ts", "src/environments/*.ts"]
}


// 5) app-routing.module.ts 에 loadChildren으로 '@micro-demo/lazyview' 설정
import { NgModule } from '@angular/core';
import { Routes, RouterModule } from '@angular/router';
const routes: Routes = [
    { path: '', pathMatch: 'full', redirectTo: '/welcome' },
    { path: 'lazyview', loadChildren: () => import('@micro-demo/lazyview').then((m) => m.LazyviewModule) },
    { path: 'welcome', loadChildren: () => import('./pages/welcome/welcome.module').then((m) => m.WelcomeModule) },
];
@NgModule({
    imports: [RouterModule.forRoot(routes)],
    exports: [RouterModule],
})
export class AppRoutingModule {}

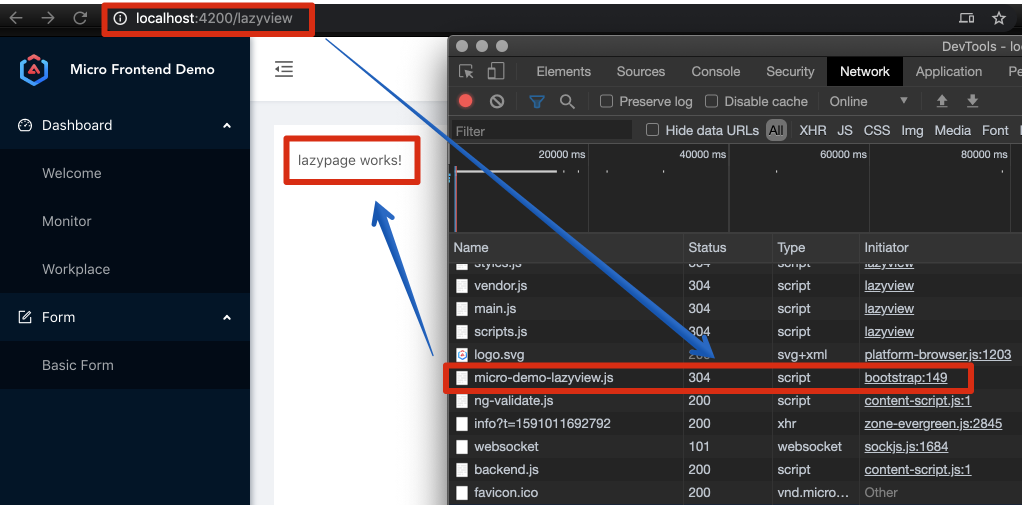

"nx serve"  수행한 후 "http://localhost:4200/lazyview" 로 호출한다.

micro-demo-lazyview.js 파일을 code splitt되어 호출시 다운로드된다.

소스: https://github.com/ysyun/blog-5730-micro-demo



ysyun/blog-5730-micro-demo

https://mobicon.tistory.com/573 블로그 소스. Contribute to ysyun/blog-5730-micro-demo development by creating an account on GitHub.

github.com
