2021. 10. 7. 10:59 React/Architecture

운영환경을 만들경우 번들링 파일간의 충돌을 최소화하기 위해 i18n 파일의 위치를 변경한다.

  • Backend i18n은 public에 있을 필요가 없다.
  • Frontend i18n은 위치도 간소화 한다.



i18N 메세지 파일 위치 변경

Backend i18n 변경

apps/gateway/api/src/public/assets/i18n 의 assets 폴더를 apps/gateway/api/src 폴더 밑으로 위치 변경하고, assets/i18n/api 폴더를 assets/i18n 폴더 밑으로 이동한다.

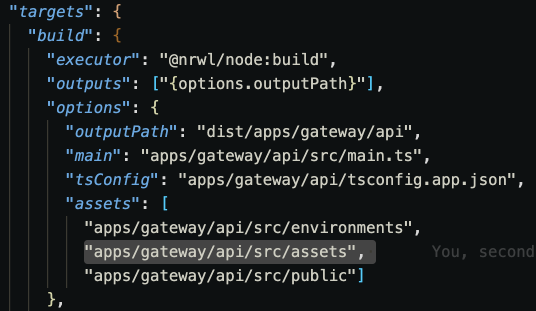

apps/gateway/api/project.json 에 assets 경로 추가하여 번들링시 포함되도록 한다.

apps/gateway/api/src/environments/config.json 에서 i18n 위치를 변경한다.

Dashboard, Configuration, Back-Office의 API Backend에도 동일 환경을 적용한다. 특히 app.module.ts에 내역중 i18n고 TypeORM, Exception Filter 내역을 추가한다.

import { join } from 'path';
import { MiddlewareConsumer, Module, NestModule, RequestMethod } from '@nestjs/common';
import { APP_FILTER, APP_GUARD } from '@nestjs/core';
import { ServeStaticModule } from '@nestjs/serve-static';
import { TypeOrmModule } from '@nestjs/typeorm';
import { getMetadataArgsStorage } from 'typeorm';

import { GatewayApiAppService, EntitiesModule, AuthModule, AuthMiddleware } from '@rnm/domain';
import { GlobalExceptionFilter, ormConfigService, RolesGuard, TranslaterModule } from '@rnm/shared';

import { environment } from '../environments/environment';
import { DashboardModule } from './dashboard/microservice/dashboard.module';
import { ConfigurationModule } from './configuration/microservice/configuration.module';
import { BackOfficeModule } from './back-office/microservice/back-office.module';
import { AppController } from './app.controller';
import { AuthController } from './auth/auth.controller';
import { UserController } from './user/user.controller';

@Module({
  imports: [
    ServeStaticModule.forRoot({
      rootPath: join(__dirname, 'public'),
      exclude: [
        '/api/auth*',
        '/api/gateway*', '/api/dashboard*', '/api/configuration*', '/api/back-office*',
        '/dashboard*', '/configuration*', '/back-office*'
      ],
    }),
    // ORM
    TypeOrmModule.forRoot({
      ...ormConfigService.getTypeOrmConfig(),
      entities: getMetadataArgsStorage().tables.map(tbl => tbl.target)
    }),
    // i18n
    TranslaterModule,
    // TypeORM
    EntitiesModule,
    // MicroService
    DashboardModule,
    ConfigurationModule,
    BackOfficeModule,
    // Auth
    AuthModule
  ],
  controllers: [
    AuthController,
    AppController,
    UserController
  ],
  providers: [
    GatewayApiAppService,
    // Global Exception Filter
    {
      provide: APP_FILTER,
      useClass: GlobalExceptionFilter,
    },
    {
      provide: APP_GUARD,
      useClass: RolesGuard,
    },
  ]
})
export class AppModule implements NestModule {
  configure(consumer: MiddlewareConsumer) {
    if(!environment || !environment.production) {
      return;
    }

    consumer
      .apply(AuthMiddleware)
      .forRoutes(...[
        { path: '/dashboard*', method: RequestMethod.ALL },
        { path: '/configuration*', method: RequestMethod.ALL },
        { path: '/back-office*', method: RequestMethod.ALL },
        // { path: '/api/*', method: RequestMethod.ALL },
      ]);
  }
}





Frontend i18n 위치 변경

apps/gateway/web/src/assets/i18n/web/locale-en.json 파일의 위치를 apps/gateway/web/src/assets/i18n/locale-en.json 로 옮긴다.

apps/gateway/web/src/environments/config.json 파일을 위의 그림처럼 추가하고, i18n, auth 관련 설정을 넣는다. I18N_JSON_PATH 앞에 /dashboard 가 추가된것에 주의 한다.

// config.json
{
  "AUTH": {
    "SECRET": "iot_secret_auth",
    "EXPIRED_ON": "1d",
    "REFRESH_SECRET": "iot_secret_refresh",
    "REFRESH_EXPIRED_ON": "7d"
  },
  "I18N_LANG": "en",
  "I18N_JSON_PATH": "/dashboard/assets/i18n/"
}

apps/gateway/web/src/environments/environment.ts 파일에 config.json을 import하여 export 한다.

export const environment = {
  production: false,
};

export const config = require('./config.json');

apps/gateway/web/src/app/core/i18n.ts 파일을 libs/ui/src/lib/i18n 폴더 밑으로 옮기고, 내역을 수정한다.

import i18next from 'i18next';
import { initReactI18next } from 'react-i18next';
import XHR from 'i18next-xhr-backend';

export function initI18N(config: any) {
  const backendOptions = {
    loadPath: (config.I18N_JSON_PATH || '/assets/i18n/') + 'locale-{{lng}}.json',
    crossDomain: true,
  };

  i18next
    .use(XHR)
    .use(initReactI18next)
    .init({
      backend: backendOptions,
      debug: true,
      lng: config.I18N_LANG || 'en',
      fallbackLng: false,
      react: {
        useSuspense: true
      }
    });
}

libs/ui/src/index.ts export를 추가한다.

export * from './lib/ajax/http.service';
export * from './lib/i18n/i18n';



다음으로 apps/gateway/web/src/main.tsx 에서 initI18N을 초기화 한다.

import * as ReactDOM from 'react-dom';

import { initI18N } from '@rnm/ui';

import App from './app/app';
import { config } from './environments/environment';

initI18N(config);
ReactDOM.render(<App />, document.getElementById('root'));





개발환경에서 Dashboard Web Dev Server로 연결하기



Gateway - Dashboard 로컬 개발시에는 총 4개의 프로세스가 구동되고 상호 연관성을 갖는다.

  • Gateway API (NodeJS & NestJS), Gateway Frontend (Web Dev Server & React) 로 Gateway하나에 두개의 프로세스가 구동된다.
  • Dashboard API, Dashboard Frontend 도 두개의 프로세스가 구동된다.

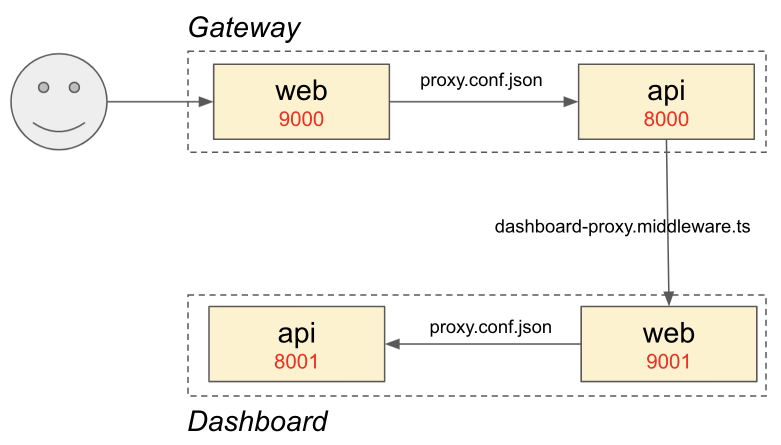

4개 프로세스간의 관계

개발시에 전체 루틴을 처리하고 싶다면 위와 같은 Proxy 설정이 되어야 한다. 환경 설정을 다음 순서로 진행한다.



Step-1) Gateway Web에서 Gateway API로 Proxy

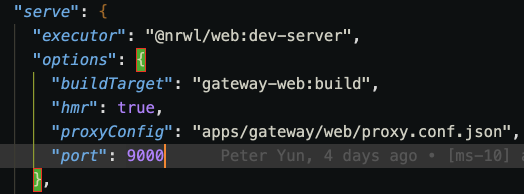

apps/gateway/web/proxy.conf.json 환경은 Dashboard, Configuration, Back-Office 모두를 proxy 한다. 그리고 apps/gateway/web/project.json 안에 proxy.conf.json과 포트 9000 을 설정한다.



Step-2) Gateway API에서 Dashboard Web으로 Proxy

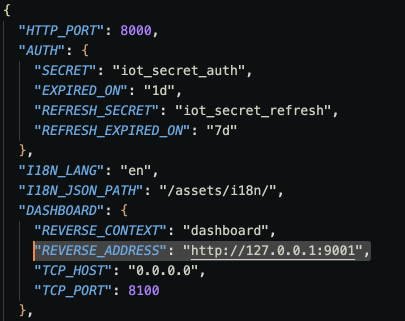

apps/gateway/api/src/environments/config.json 에서 REVERSE_ADDRESS가 기존 Dashboard API 의 8001 이 아니라, Dashboard Web의 9001 로 포트를 변경하면 된다.



Step-3) Dashboard Web 에서 Dashboard API로 proxy

Dashboard API로 proxy 하기위해 apps/dashboard/web/proxy.conf.json 파일을 추가한다. api 호출은 dashboard api의 8001로 proxy 한다.

{
  "/dashboard/api/*": {
    "target": "http://localhost:8001",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  }
}

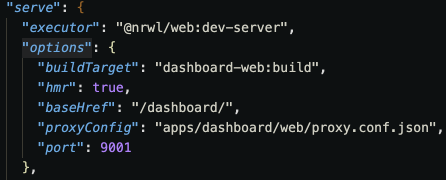

apps/dashboard/web/project.json 에 설정한다.

  • proxyConfig
  • port
  • baseHref: "/dashboard/"를 설정한다. "/dashboard"로 하면 안된다.



Step-4) Dashboard API 변경사항

apps/dashboard/api/src/public/dashboard 하위 내역을 모드 apps/dashboard/api/src/public으로 옮기고, dashboard  폴더를 삭제한다.

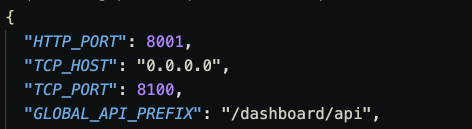

apps/dashboard/api/src/environments/config.json 의 HTTP 포트는 8001 이다.



테스트

먼저 콘솔에서 gateway, dashboard web을 구동한다.

$> nx serve gateway-web
NX  Web Development Server is listening at http://localhost:9000/

$> nx serve dashboard-web
>  NX  Web Development Server is listening at http://localhost:9001/

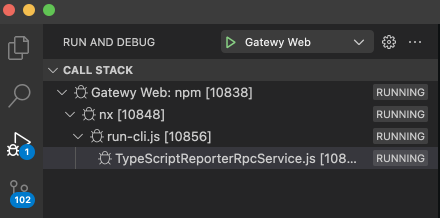

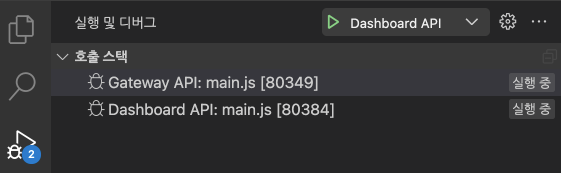

VSCode에서 gateway, dashboard api를 구동한다.

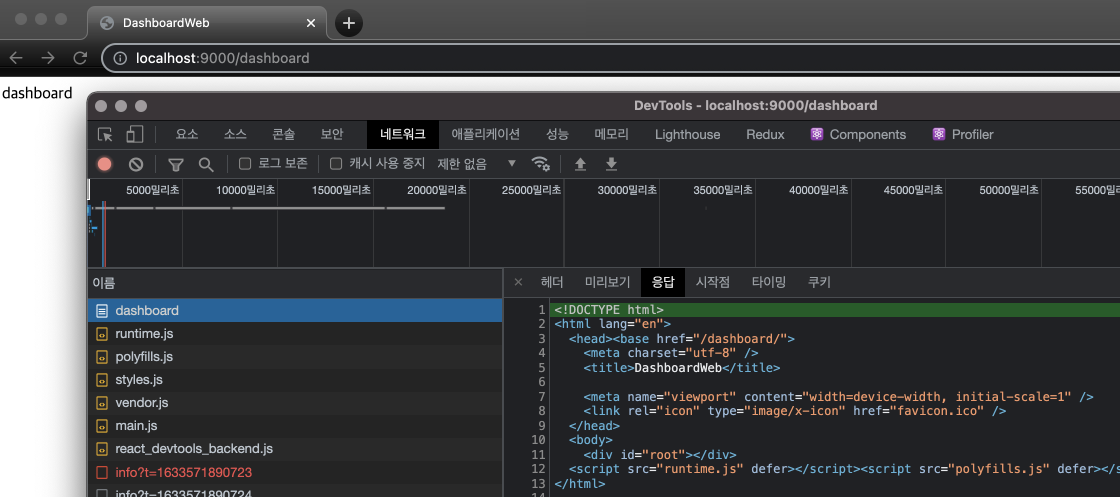

브라우져에서 http://localhost:9000 을 호출하고, 로그인 해서 dashboard web 의 index.html 이 호출되는지 체크한다.

proxy통해 dashboard web의 index.html 호출 성공



소스: https://github.com/ysyun/rnm-stack/releases/tag/ms-11



Release ms-11 · ysyun/rnm-stack

fixed i18n config and test env

github.com



posted by 윤영식
2021. 10. 2. 21:10 React/Architecture

NestJS과 React에 i18n을 적용하고, config 파일로딩에 대한 리팩토링과 기타 기능들을 추가로 적용한다.





NestJS에 i18n 적용

nestjs-i18n 패키지를 사용한다.

$> yarn add nestjs-i18n



i18n message 파일은 json 포멧이고, 이를 위해 apps/gateway/api/src/public/assets/i18n/api 폴더를 생성한다. i18n/api 폴더에는 언어에 맞는 폴더를 생성한다.

  • nestjs 번들링 배포시 api 서버의 i18n 파일은 public/assets/i18n/api 폴더 하위에 위치한다.
  • react 번들링 파일의 i18n 파일은 public/assets/i18n/web 폴더 하위에 위치한다.

libs/shared/src/lib/configuration/config.model.ts 의 GatewayConfiguration에 I18N_LANG 을 추가한다.

// config.model.ts
export interface MicroServiceConfiguration {
  REVERSE_CONTEXT?: string;
  REVERSE_ADDRESS?: string;
  HTTP_PORT?: number,
  TCP_HOST?: string;
  TCP_PORT?: number,
  GLOBAL_API_PREFIX?: string;
  AUTH?: AuthConfig;
  I18N_LANG?: string; // <== 요기
  I18N_JSON_PATH?: string; // <== 요기
}

export interface GatewayConfiguration {
  HTTP_PORT?: number,
  DASHBOARD?: MicroServiceConfiguration;
  CONFIGURATION?: MicroServiceConfiguration;
  BACK_OFFICE?: MicroServiceConfiguration;
  AUTH?: AuthConfig;
  I18N_LANG?: string; // <== 요기
  I18N_JSON_PATH?: string; // <== 요기
}

apps/gateway/api/src/environments/config.json 파일에 환경을 설정한다.

// config.json
{
  "HTTP_PORT": 8000,
  "AUTH": {
    "SECRET": "iot_secret_auth",
    "EXPIRED_ON": "1d",
    "REFRESH_SECRET": "iot_secret_refresh",
    "REFRESH_EXPIRED_ON": "7d"
  },
  "I18N_LANG": "en",
  "I18N_JSON_PATH": "/public/assets/i18n/api/",
  ...
}

i18n 파일을 apps/gateway/api/src/public/assets/i18n/api/en(ko)/message.json 파일을 생성하고, 설정한다.

{
  "USER_NOT_EXIST": "User {username} with this id does not exist"
}

다음으로 libs/shared 쪽에 libs/shared/src/lib/i18n/translater.service.ts 파일을 생성한다.

// translater.service.ts
import { Injectable } from '@nestjs/common';
import { I18nService } from 'nestjs-i18n';

@Injectable()
export class TranslaterService {
  constructor(private readonly i18nService: I18nService) { }

  async message(key: string, message: (string | { [k: string]: any; })[] | { [k: string]: any; }): Promise<string> {
    return this.i18nService.translate(`message.${key}`, { args: message });
  }
}

translater module도 libs/shared/src/lib/i18n/translater.module.ts 파일도 생성한다.

// translater.module.ts
import { join } from 'path';
import { Module } from '@nestjs/common';
import { I18nModule, I18nJsonParser } from 'nestjs-i18n';
import { loadConfigJson } from '@rnm/shared';
import { TranslaterService } from './translater.service';

const config: any = loadConfigJson();

@Module({
  imports: [
    I18nModule.forRoot({
      fallbackLanguage: config.I18N_LANG,
      parser: I18nJsonParser,
      parserOptions: {
        path: join(__dirname, config.I18N_JSON_PATH),
      },
    })
  ],
  providers: [TranslaterService],
  exports: [TranslaterService]
})
export class TranslaterModule { }


// libs/shared/src/index.ts 안에 export도 추가한다.
export * from './lib/i18n/translater.service';
export * from './lib/i18n/translater.module';

이제 사용을 해본다.

  • apps/gateway/api/src/app/app.module.ts 에 TranslaterModule을 추가한다.
  • apps/gateway/api/src/app/app.controller.ts 에 Service를 사용한다. translate key로는 [fileName].[jsonKey] 를 넣는다.
// app.module.ts
import { TranslaterModule } from '@rnm/shared';
@Module({
  imports: [
    ...
    // i18n
    TranslaterModule,
    ...
}


// app.controller.ts
import { Controller, Get } from '@nestjs/common';
import { GatewayApiAppService } from '@rnm/domain';
import { TranslaterService } from '@rnm/shared';

@Controller('api/gateway')
export class AppController {
  constructor(
    private readonly appService: GatewayApiAppService,
    private readonly translater: TranslaterService
  ) { }

  @Get()
  getData() {
    return this.translater.message('USER_NOT_EXIST', { username: 'Peter Yun' });
  }
}

Gateway API를 디버깅 시작하고, 호출 테스트한다.  Forbidden 에러가 떨어지면 app.module.ts의 AuthMiddleware 경로에서 잠시 "/api*" 설정을 제거후 테스트 한다.

// apps/gateway/api/src/app/app.module.ts
export class AppModule implements NestModule {
  configure(consumer: MiddlewareConsumer) {
    consumer
      .apply(AuthMiddleware)
      .forRoutes(...[
        { path: '/dashboard*', method: RequestMethod.ALL },
        { path: '/configuration*', method: RequestMethod.ALL },
        { path: '/back-office*', method: RequestMethod.ALL },
        // { path: '/api/*', method: RequestMethod.ALL }, <== 요기
      ]);
  }
}

맵핑되어 정보가 나옴

에러 메세지에 대해 Global Exception에 적용해 본다.

import { Request, Response } from 'express';
import { ArgumentsHost, Catch, ExceptionFilter, HttpException, HttpStatus, Logger } from '@nestjs/common';
import { TranslaterService } from '../i18n/translater.service';

@Catch()
export class GlobalExceptionFilter implements ExceptionFilter {
  constructor(private readonly translater: TranslaterService) { }

  // async로 Promise 반환
  async catch(exception: any, host: ArgumentsHost) {
    const ctx = host.switchToHttp();
    const response = ctx.getResponse<Response>();
    const request = ctx.getRequest<Request>();
    let message = (exception as any).message;
    // key, args가 있으면 translater
    if (message && message.key && message.args) {
      message = await this.translater.message(message.key, message.args);
    }
    ...
  }
}





React에 i18n 적용

react-i18next를 사용한다.

$> yarn add react-i18next i18next i18next-xhr-backend

i18n 설정을 위해 apps/gateway/web/src/app/core/i18n.ts 파일을 생성한다.

// i18n.ts
import i18next from 'i18next';
import { initReactI18next } from 'react-i18next';
import XHR from 'i18next-xhr-backend';

const backendOptions = {
  loadPath: '/assets/i18n/web/locale-{{lng}}.json',
  crossDomain: true,
};

i18next
  .use(XHR)
  .use(initReactI18next)
  .init({
    backend: backendOptions,
    debug: true,
    lng: 'en',
    fallbackLng: false,
    react: {
      useSuspense: true
    }
  });

export default i18next;

설정파일을 apps/gateway/web/src/assets/i18n/web/locale-en.json 을 생성한다.

{
  "LOGIN": {
    "USERNAME": "Username",
    "PASSWORD": "Password"
  }
}

apps/gateway/web/src/app/app.tsx 파일에 i18n 파일을 로딩한다.

// app.tsx
import { Suspense } from 'react';
import styles from './app.module.scss';
import Login from './login/login';

import './core/i18n';

const Loader = () => (
  <div className={styles.loading}>
    {/* <img src={logo} className="App-logo" alt="logo" /> */}
    <div>loading...</div>
  </div>
);

export function App() {
  return (
    <Suspense fallback={<Loader />}>
      <Login />;
    </Suspense>
  );
}
export default App;

apps/gateway/web/src/app/login/login.tsx 에서 useTranslation() hook을 사용한다.

import { Row, Col, Form, Input, Button } from 'antd';
// import
import { useTranslation } from 'react-i18next';
...

function Login() {
  const { t, i18n } = useTranslation();
  return (
    <div className={styles.login_container}>
     ...
              // t를 통해 translation
              <Form.Item
                label={t('LOGIN.USERNAME')}
                name="username"
                rules={[{ required: true, message: 'Please input your username!' }]}
              >
                <Input />
              </Form.Item>

              <Form.Item
                label={t('LOGIN.PASSWORD')}
                name="password"
                rules={[{ required: true, message: 'Please input your password!' }]}
              >
                <Input.Password />
              </Form.Item>
     ...
   </div>
  );
}





Configuration 리팩토링

NestJS에서 사용하는 config.json 파일을 한번만 로딩하도록 libs/shared/src/lib/configuration/config.service.ts 파일을 리팩토링한다.

// config.service.ts
import * as fs from "fs";
import { join } from 'path';
import { GatewayConfiguration, MicroServiceConfiguration, OrmConfiguration } from "./config.model";

export const loadConfigJson = (message = '[LOAD] config.json file'): MicroServiceConfiguration | GatewayConfiguration => {
  let config: any = process.env.config;
  if (!config) {
    console.log(`${message}:`, `${__dirname}/environments/config.json`);
    const jsonFile = fs.readFileSync(join(__dirname, 'environments', 'config.json'), 'utf8');
    process.env.config = jsonFile;
    config = JSON.parse(jsonFile);
  } else {
    config = JSON.parse(process.env.config as any);
  }
  return config;
}

export const loadOrmConfiguration = (message = '[LOAD] orm-config.json file'): OrmConfiguration => {
  let config: any = process.env.ormConfig;
  if (!config) {
    console.log(`${message}:`, `${__dirname}/environments/orm-config.json`);
    const jsonFile = fs.readFileSync(join(__dirname, 'environments', 'orm-config.json'), 'utf8');
    process.env.ormConfig = jsonFile;
    config = JSON.parse(jsonFile);
  } else {
    config = JSON.parse(process.env.ormConfig as any);
  }
  return config;
}



소스: https://github.com/ysyun/rnm-stack/releases/tag/ms-10





<참조>

- nestjs-i18n 적용하기

https://github.com/ToonvanStrijp/nestjs-i18n



GitHub - ToonvanStrijp/nestjs-i18n: Add i18n support inside your nestjs project

Add i18n support inside your nestjs project. Contribute to ToonvanStrijp/nestjs-i18n development by creating an account on GitHub.

github.com

- react best i18n libraries

https://phrase.com/blog/posts/react-i18n-best-libraries/



Curated List: Our Best of Libraries for React I18n – Phrase

There may be no built-in solution for React i18n, but these amazing libraries will help you manage your i18n projects from start to finish.

phrase.com

- react-i18next 공식 홈페이지

https://react.i18next.com/



Introduction



react.i18next.com

- i18next의 react 사용예

https://github.com/i18next/react-i18next/blob/master/example/react/src/App.js



GitHub - i18next/react-i18next: Internationalization for react done right. Using the i18next i18n ecosystem.

Internationalization for react done right. Using the i18next i18n ecosystem. - GitHub - i18next/react-i18next: Internationalization for react done right. Using the i18next i18n ecosystem.

github.com



posted by 윤영식
2021. 9. 30. 19:48 React/Architecture

React로 Login 화면을 개발한다.





Gateway의 api server와 web dev server의 연결

Gateway를 개발환경에서 api server를 구동하고, web 화면 테스트를 위하여 web dev server가 구동하면 web dev server의 요청이 api server로 proxy 되어야 한다.

  • apps/gateway/web/proxy.conf.json 파일을 생성한다.
  • apps/gateway/web/project.json에 "proxyConfig" 위치와 "port"는 7000 번으로 설정한다.
// project.json 일부분

"serve": {
      "executor": "@nrwl/web:dev-server",
      "options": {
        "buildTarget": "gateway-web:build",
        "hmr": true,
        "proxyConfig": "apps/gateway/web/proxy.conf.json", <== 요기
        "port": 7000  <== 요기
      },
      ...
}

proxy.conf.json 내역

{
  "/gateway/*": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  },
  "/api/gateway/*": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  },
  "/api/auth/login": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  },
  "/dashboard/*": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  },
  "/dashboard/api/*": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  },
  "/configuration/*": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  },
  "/configuration/api/*": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  },
  "/back-office/*": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  },
  "/back-office/api/*": {
    "target": "http://localhost:8000",
    "secure": false,
    "changeOrigin": true,
    "ws": true
  }
}

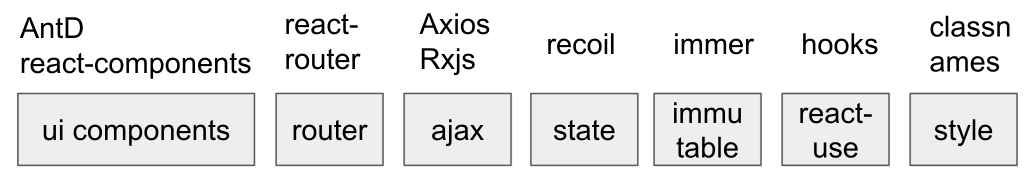

Web 패키지들 설치

rnn-stack의 글을 참조한다.

  • antd components 패키지 설치: "yarn add antd @ant-design/icons"
  • React Router 설치: "yarn add react-router react-router-dom"
  • Axios 설치: "yarn add axios"

VSCode의 디버깅 실행 환경파일인 launch.json파일에 Web Dev Server를 수행할 수 있도록 설정한다. VSCode에서 실행보다는 별도 terminal 에서 수행하는 것을 권장하고, 옵션으로 사용한다.

// launch.json 일부 내역
    {
      "type": "node",
      "request": "launch",
      "name": "Gateway API",
      "program": "${workspaceFolder}/apps/gateway/api/src/main.ts",
      "preLaunchTask": "build:gateway-api",
      "outFiles": ["${workspaceFolder}/dist/apps/gateway/api/**/*.js"]
    },
    // 하기 내역
    {
      "type": "node",
      "request": "launch",
      "name": "Gatewy Web",
      "runtimeExecutable": "npm",
      "runtimeArgs": ["run", "start:gateway-web"],
      "outFiles": ["${workspaceFolder}/dist/apps/gateway/web/**/*.js"]
    },

npm의 script로 "start:gateway-web"을 설정한다.

// package.json 일부

  "scripts": {
    "build:gateway-api": "nx build gateway-api",
    "start:gateway-api": "nx serve gateway-api",
    "build:gateway-web": "nx build gateway-web",
    "start:gateway-web": "nx serve gateway-web",
    ....
  },

이제 VS Code에서 Gateway web을 실행하고, http://localhost:7000/ 호출한다.

Gateway Web Dev Server 기동





Login 화면 저작

nx 명령을 이용해 login 컴포넌트를 생성한다.

$> nx g @nrwl/react:component login --project=gateway-web

생성된 파일들

login.tsx 내역

// login.tsx
import { Row, Col, Form, Input, Button } from 'antd';
import { httpService } from '@rnm/ui';
import { LoginDto } from '@rnm/model';
import styles from './login.module.scss';

export function Login() {
  const onFinish = (user: LoginDto) => {
    httpService.post<LoginDto>('/api/auth/login', user).subscribe((result: LoginDto) => {
      console.log('Success:', result);
      // redirect dashboard
      location.href = '/dashboard';
    });
  };

  const onFinishFailed = (errorInfo: any) => {
    console.log('Failed:', errorInfo);
  };

  return (
    <div className={styles.login_container}>
      <div className={styles.center_bg}>
        <Row justify="center" align="middle" className={styles.form_container}>
          <Col span={16} offset={6}>
            <Form
              name="basic"
              layout="vertical"
              labelCol={{ span: 16 }}
              wrapperCol={{ span: 16 }}
              initialValues={{ remember: true }}
              onFinish={onFinish}
              onFinishFailed={onFinishFailed}
              autoComplete="off"
            >
              <Form.Item
                label="Username"
                name="username"
                rules={[{ required: true, message: 'Please input your username!' }]}
              >
                <Input />
              </Form.Item>

              <Form.Item
                label="Password"
                name="password"
                rules={[{ required: true, message: 'Please input your password!' }]}
              >
                <Input.Password />
              </Form.Item>

              <Form.Item wrapperCol={{ span: 16 }}>
                <Button type="primary" htmlType="submit" block>
                  Submit
                </Button>
              </Form.Item>
            </Form>
          </Col>
        </Row>
      </div>
    </div>
  );
}

export default Login;





Gateway API 서버 호출하기

Web 에서 사용할 라이브러리는 분리하고, API와 Web이 공용하는 부분은 Model에만 국한한다. 따라서 @rnm/model 패키지를 생성한다.

$> nx g @nrwl/react:lib model --publishable --importPath=@rnm/model

domain/entities/user/user.model.ts 을 libs/model/src/lib/user/user.model.ts 로 copy하고, domain에서는 삭제한다. 그리고 user.model사용하는 클래스를 일괄 수정한다.

// user.model.ts
export interface User {
  id?: number;
  username: string;
  password?: string;
  email?: string;
  firstName?: string;
  lastName?: string;
  role?: string;
  sub?: string | number;
  currentHashedRefreshToken?: string;
}
export type LoginDto = Pick<User, 'username' | 'password'>;
export type TokenPayload = Omit<User, 'password'>;

export enum UserRole {
  ADMIN = 'ADMIN',
  MANAGER = 'MANAGER',
  CUSTOMER = 'CUSTOMER',
  GUEST = 'GUEST',
}



다음으로 libs/ui/src/lib/ajax/http.service.ts 파일을 생성하고, http.service.ts 코드에, error처리 notification을 추가한다.

// http.service.ts 일부
  import { notification } from 'antd';

  ...
  private executeRequest<T>(args: RequestArgs): Observable<T> {
    const { method, url, queryParams, payload } = args;
    let request: AxiosPromise<T>;
    switch (method) {
      case HttpMethod.GET:
        request = this.httpClient.get<T>(url, { params: queryParams });
        break;
      case HttpMethod.POST:
        request = this.httpClient.post<T>(url, payload);
        break;
      case HttpMethod.PUT:
        request = this.httpClient.put<T>(url, payload);
        break;
      case HttpMethod.PATCH:
        request = this.httpClient.patch<T>(url, payload);
        break;
      case HttpMethod.DELETE:
        request = this.httpClient.delete<T>(url);
        break;
    }

    return new Observable<T>((observer: Observer<T>) => {
      request
        .then((response: AxiosResponse) => {
          observer.next(response.data);
        })
        .catch((error: AxiosError | Error) => {
          this.abort(true);
          if (axios.isAxiosError(error)) {
            if (error.response) {
              // NestJS의 global-exception.filter.ts의 포멧
              const data: any = error.response?.data || {};
              this.showNotification(`[${data.statusCode}] ${data.error}`, data.message);
              console.log(`[${data.statusCode}] ${data.error}: ${data.message}`);
            }
          } else {
            this.showNotification('Unknow Error', error.message);
            console.log(error.message);
          }
        })
        .finally(() => {
          this.completed = true;
          observer.complete();
        });
      return () => this.abort();
    });
  }

  private showNotification(message: string, description: string): void {
    notification.error({
      message,
      description
    });
  }
}

에러처리는 libs/shared/src/lib/filter/global-exception.filter.ts 의 에러 포멧을 따른다.

import { Request, Response } from 'express';
import { ArgumentsHost, Catch, ExceptionFilter, HttpException, HttpStatus, Logger } from '@nestjs/common';

@Catch()
export class GlobalExceptionFilter implements ExceptionFilter {
  catch(exception: any, host: ArgumentsHost) {
    const ctx = host.switchToHttp();
    const response = ctx.getResponse<Response>();
    const request = ctx.getRequest<Request>();
    const message = (exception as any).message;

    Logger.error(message, (exception as any).stack, `${request.method} ${request.url}`);

    const name = exception?.constructor?.name || 'HttpException';
    let status = HttpStatus.INTERNAL_SERVER_ERROR;
    switch (name) {
      case 'HttpException':
        status = (exception as HttpException).getStatus();
        break;
      case 'UnauthorizedException':
        status = HttpStatus.UNAUTHORIZED;
        break;
      case 'ForbiddenException':
        status = HttpStatus.FORBIDDEN;
        break;
      case 'QueryFailedError':  // this is a TypeOrm error
        status = HttpStatus.UNPROCESSABLE_ENTITY;
        break;
      case 'EntityNotFoundError':  // this is another TypeOrm error
        status = HttpStatus.UNPROCESSABLE_ENTITY;
        break;
      case 'CannotCreateEntityIdMapError': // and another
        status = HttpStatus.UNPROCESSABLE_ENTITY;
        break;
      default:
        status = HttpStatus.INTERNAL_SERVER_ERROR;
    }

	// 에러 리턴 포멧
    response.status(status).json(
      {
        statusCode: status,
        error: name,
        message,
        method: request.method,
        path: request.url,
        timestamp: new Date().toISOString()
      }
    );
  }
}



테스트 진행시 UI가 Nest쪽 패키지를 사용하면 번들링 오류가 발생할 수 있다. 따라서 libs 하위의 패키지들은 향후 API용, WEB용 구분하여 사용하고, model 패키지만 공용으로 사용한다. API용, WEB용을 구분한다면 하기와 같이 별도 폴더로 묶어 관리하는게 좋아 보인다.

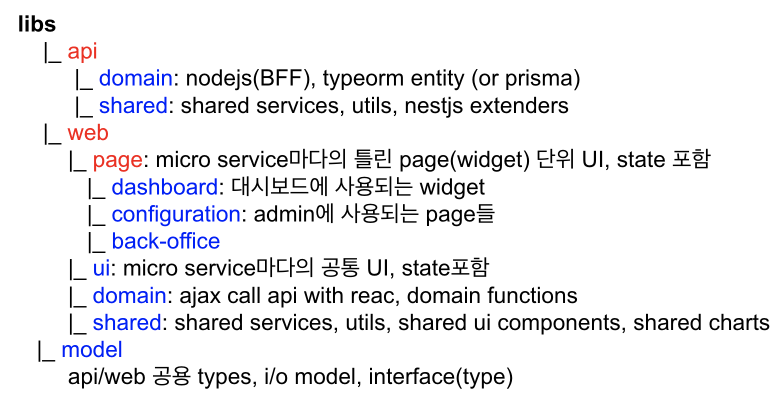

api, web, model 분리



Nx 기반 library 생성 명령은 다음과 같다.

// api library
$>  nx g @nrwl/nest:lib api/shared --publishable --importPath=@rnm/api-shared
$>  nx g @nrwl/nest:lib api/domain --publishable --importPath=@rnm/api-domain

// web library
$> nx g @nrwl/react:lib web/shared --publishable --importPath=@gv/web-shared
$> nx g @nrwl/react:lib web/domain --publishable --importPath=@gv/web-domain
$> nx g @nrwl/react:lib web/ui --publishable --importPath=@gv/web-ui

// model library
$> nx g @nrwl/nest:lib model --publishable --importPath=@gv/model

라이브러 생성 폴더 구조



소스: https://github.com/ysyun/rnm-stack/releases/tag/ms-9



Release ms-9 · ysyun/rnm-stack

[ms-9] added login component and enhanced ajax error notification

github.com





<참조>

- React 라이브러리 환경 구성

https://mobicon.tistory.com/580



[React HH-3] 라이브러리 설정 - Axios, RxJS

React 외에 애플리케이션 개발을 위한 라이브러리를 설치한다. UI Components PrimeReact, EUI, MaterialUI, AntD 검토후 소스레벨 최신으로 반영하고 있고, 다양한 비즈니스 UX 대응 가능한 AntD를 선택한다. //..

mobicon.tistory.com

- location.href와 location.replace 차이점

https://opentutorials.org/module/2919/22904



location.href 와 location.replace 차이점 - JavaScript Tips

[출처] [자바스크립트] location.href 와 location.replace 의 차이점.|작성자 왕따짱 location.href location.replace   기능 새로운 페이지로 이동된다. 기존페이지를 새로운 페이지로 변경시킨다.   형태 속

opentutorials.org



posted by 윤영식
2021. 9. 8. 19:10 React/Start React

서버 사이드 렌더링을 위하여 Next.JS를 적용해 본다. Micro Frontend 전략을 활용하여 구성해 본다.

  • apps 밑에는 multi application이 존재한다.
  • libs 밑에는 base 패키지들이 있다. base 패키지는 계속 추가될 수 있다.
  • feature는 view와 domain이 존재한다.
    • view: 업무 UI 표현
    • domain: 업무 api 호출(react-query or graphql query) 및 결과 data model, custom Hook 기반
  • page에서 view와 domain을 조합한다.
    • SSR에서 Next.JS 기반으로 진행시 feature의 domain을 통해 데이터를 다룬다.

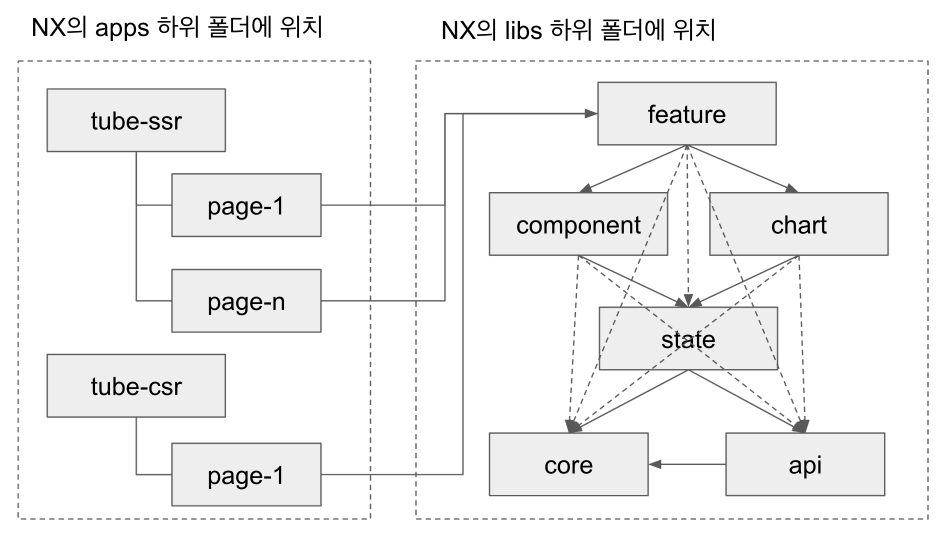

멀티 애플리케이션에서의 단위 업무화면 구성방식





NextJS 개념

최신것이 항상 좋은 것이 아니다. SPA 프레임워크의 CSR(Client Side Rendering)만으로 개발하다가 예전의 JSP, ASP같은 SSR(Server Side Rendering)의 이점이 있었다. NextJS는 CSR, SSR 뿐만아니라 SSG(Static Site Generation)도 지원을 한다.



  • CSR
  • SSR
  • SSG

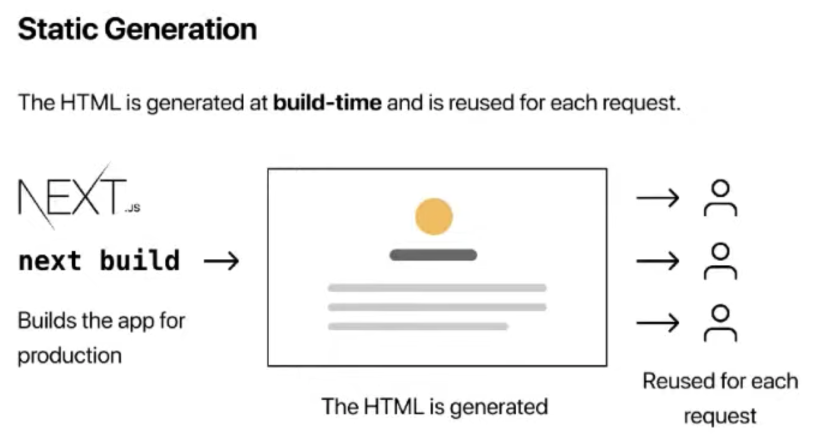

SSG에 대한 개념



SSG를 위한 getStaticProps, getStaticPaths

  • getStaticProps와 getStaticPaths는 async이다.
  • getStaticProps, getStaticPaths에서 데이터를 가져오는 domain에 위치한 api를 호출한다.
  • getStaticPaths는 URL path에 따라 데이터가 변경될 때를 대비한다.



SSR를 위한 getServerSideProps

  • 서버에 요청때 마다 데이터를 맵핑하여 응답한다.



Use Case

  • Data가 즉각적으로 변화하는 Dashboard에는 CSR을 적용
  • eCommerce 같은 경우 제품의 변경이 수시로 일어나지 않을 때 SSG 적용
  • NodeJS위에 Isomorphic Application으로 간다.



Frontend 개발 영역의 변경

  • NodeJS 기반위에 페이지 개발의 주도권을 Frontend에서 갖는다.
  • Backend API를 조합하는 역할을 수행한다.

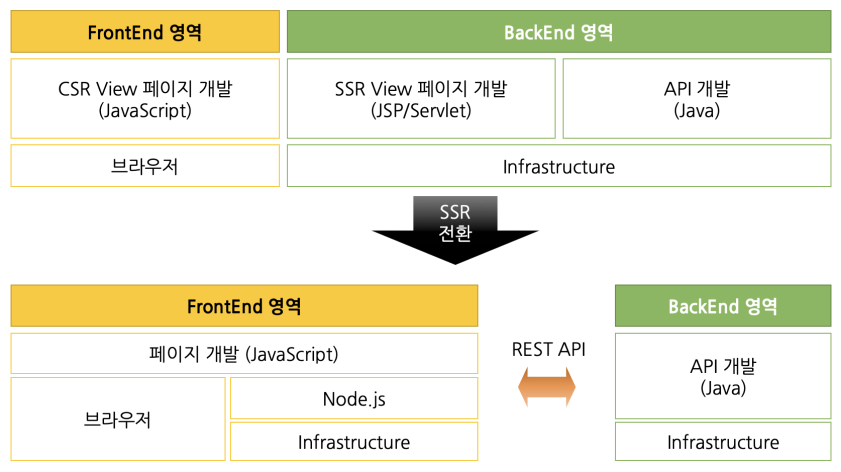

Frontend 개발영역의 확장. (출처: D2 참조글)

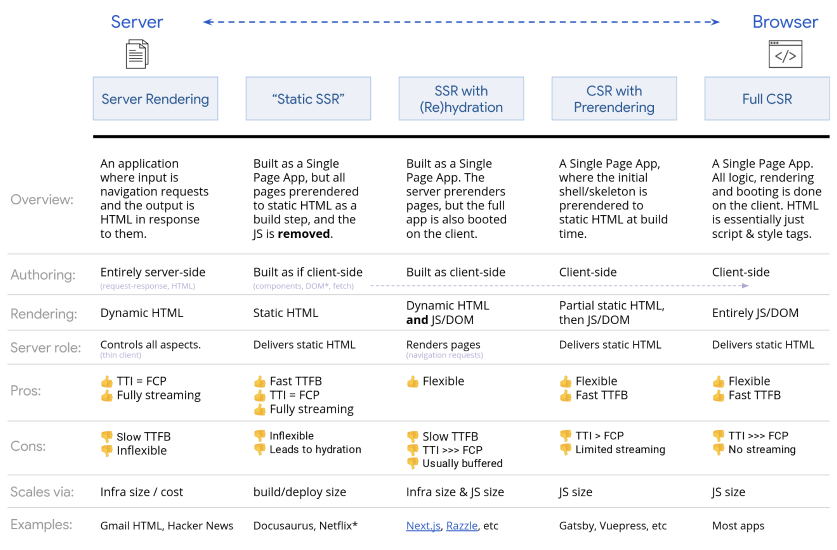

Rendering on the Web 위치

Rendering on the Web 출처



NextJS기반 애플리케이션은 이전 블로그에서 tube-ssr 애플리케이션을 생성하였다. 이를 기반으로 다음 글에서 로그인 화면을 만들어 보자





<참조>

> Vercel의 NextJS 소개 영상

https://www.youtube.com/watch?v=eMwTEo6AjDc

> CSR, SSR, SSG 의 흐름

https://wonit.tistory.com/361



[정직하게 배워보는 Next.js] (번외) 웹의 발전 과정으로 보는 CSR 그리고 SSG와 SSR

해당 블로그 시리즈는 정직하게 배워보는 Next js 시리즈로써 총 8부작으로 이루어져 있습니다. Next.js공식 홈페이지에서 이야기하는 내용을 최대한 이해하기 쉽고 직관적이게 구성하였습니다. 0.

wonit.tistory.com



> SPA의 SSR 지원

https://d2.naver.com/helloworld/7804182



> NextJS 기반 실습 시리즈

https://velog.io/@mskwon/next-js-page-static-generation



Next JS Page Static Generation

Next JS에서는 각 페이지에 대해서 pre-rendering을 위해 SSR(서버 사이드 렌더링) 또는 SG(정적 생성) 옵션을 제공한다. 각각 페이지 컴포넌트에서 getServerSideProps, getStaticProps/getStaticPaths 함수 expo

velog.io



posted by 윤영식
2021. 9. 7. 17:49 React/Start React

 props를 통해 하위 컴포넌트에 전파하는 것이 아니라 글로벌하게 접근할 수 있는 상태 저장소 사용을 위해 recoil을 사용한다. recoil 사용이유는 간결하며 Hook스타일 개발에 적합해 보인다.



Concept & API

1) Flexible shared state: 유연하게 상태를 공유해 보자

2) Derived data and queries: 파생으로 데이터를 만들고 조회할 수 있다.

3) App-wide state observation: 애플리케이션 전체에 걸쳐 변경을 관찰할 수 있다.



atom: 상태의 단위이다.

useRecoilState: useState와 같이 read/write 가능

useSetRecoilState/useResetRecoilState: write-only

useRecoilValue: read-only, useRecoilValue(atom | selector)

selector: 파생상태를 갖거나, Async호출을 하고 싶을 경우

사용예) recoil-paint 소스





설치 및 설정

recoil을 설치한다.

$> npm install recoil

ESLint에 recoil hook 을 설정한다. 루트의 .eslintrc.json 파일에 useRecoilCallback 을 설정한다.

{
  "root": true,
  "ignorePatterns": ["**/*"],
  "plugins": ["@nrwl/nx"],
  "overrides": [
    {
      "files": ["*.ts", "*.tsx", "*.js", "*.jsx"],
      "rules": {
        "@nrwl/nx/enforce-module-boundaries": [
          "error",
          {
            "enforceBuildableLibDependency": true,
            "allow": [],
            "depConstraints": [
              {
                "sourceTag": "*",
                "onlyDependOnLibsWithTags": ["*"]
              }
            ]
          }
        ],
        // 해당 하위 설정
        "react-hooks/exhaustive-deps": [
          "warn",
          {
            "additionalHooks": "useRecoilCallback"
          }
        ]
      }
    },
    {
      "files": ["*.ts", "*.tsx"],
      "extends": ["plugin:@nrwl/nx/typescript"],
      "rules": {}
    },
    {
      "files": ["*.js", "*.jsx"],
      "extends": ["plugin:@nrwl/nx/javascript"],
      "rules": {}
    }
  ]
}

apps/tube-csr/src/main.tsx 에 RecoilRoot를 설정한다.

import { StrictMode } from 'react';
import * as ReactDOM from 'react-dom';

import { QueryClient, QueryClientProvider } from 'react-query';
import { ReactQueryDevtools } from 'react-query/devtools';
import { RecoilRoot } from 'recoil';

import App from './app/app';

const queryClient = new QueryClient();

ReactDOM.render(
  <StrictMode>
    <QueryClientProvider client={queryClient}>
      <RecoilRoot>
        <App />
      </RecoilRoot>
      <ReactQueryDevtools />
    </QueryClientProvider>
  </StrictMode>,
  document.getElementById('root')
);



state 패키지 구성 및 async 적용하기

libs/state 패키지를 생성한다.

$> nx g @nrwl/react:lib state

UPDATE workspace.json
CREATE libs/state/project.json
CREATE libs/state/.eslintrc.json
CREATE libs/state/.babelrc
CREATE libs/state/README.md
CREATE libs/state/src/index.ts
CREATE libs/state/tsconfig.json
CREATE libs/state/tsconfig.lib.json
UPDATE tsconfig.base.json
CREATE libs/state/jest.config.js
CREATE libs/state/tsconfig.spec.json
CREATE libs/state/src/lib/state.module.scss
CREATE libs/state/src/lib/state.spec.tsx
CREATE libs/state/src/lib/state.tsx



core, state, api의 사용관계도. 원칙으로 상호 참조는 할 수 없고, 단방향 사용만 가능하다.

core와 api 패키지는 최하단에 위치하고, app(application)은 core,state, api모두를 이용한다. state는 core, api를 이용한다.

조건)

  - state는 selector를 통해 state 변경이 요구될 때만 aync ajax 호출이 있는 경우 api 패키지를 접근한다.

  - api는 기본적으로 모든 ajax call을 처리한다.

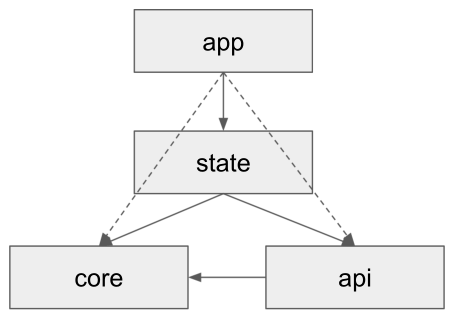

사용 관계도



State Custom Hook 을 만들어 기존의 useDogApi (기존 useDogList를 Api postfix로 명칭 변경)를 호출토록 한다. libs/state/src/lib 폴더에 dog.state.tsx를 만들고 다음과 같이 리팩토링한다.

  • api 패키지의 useDogApi()를 호출한다.
  • atom을 생성한다: dog 목록을 저장
  • useEffect안에서 render이후 설정한다. useEffect를 사용하지 않으면 에러가 발생한다.

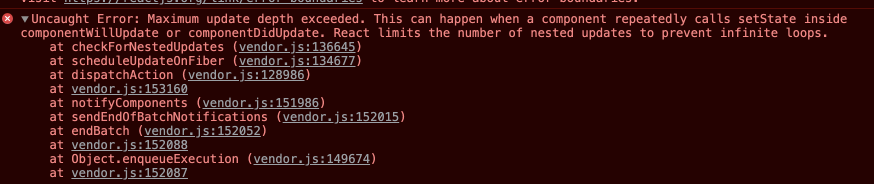

without useEffect

import { useEffect } from 'react';
import { atom, useRecoilState } from 'recoil';

import { useDogApi } from '@rnn-stack/api';

export const dogAtom = atom<string[]>({
  key: 'dogAtom',
  default: [],
});

export function useDogState(): [isLoading: boolean, dog: string[], error: Error | null] {
  const { isLoading, data, error } = useDogApi();
  const [dog, setDog] = useRecoilState(dogAtom);

  useEffect(() => {
    setDog(data?.message || []);
  }, [data?.message, setDog]);

  return [isLoading, dog, error];
}

react-query의 반환값을 같이 넘긴다. useDogState Hook을 apps/tube-csr/src/app/dog.tsx에 적용한다. 즉, 기존 useDogApi 코드를 리팩토링한다.

import { List } from 'antd';
import { useDogState } from '@rnn-stack/state';

function DogList() {
  // recoil을 사용한 custom hook 적용
  const [isLoading, dog, error] = useDogState();

  if (isLoading || !dog) {
    return <span>loading...</span>;
  }

  if (error) {
    return <span>Error: {error.message}</span>;
  }

  return (
    <List
      header={<div>Header</div>}
      footer={<div>Footer</div>}
      bordered
      dataSource={dog}
      renderItem={(item: string) => <List.Item>{item}</List.Item>}
    />
  );
}

export default DogList;

위의 경우는 api호출후 서버 state에 결과를 저장하는 과정으로 react-query를 사용해도 되지만 예로 작성해 보았다. UI에 대한 state 저장은 소개 영상을 참조한다.

https://www.youtube.com/watch?v=_ISAA_Jt9kI&t=1s





소스: https://github.com/ysyun/rnn-stack/releases/tag/hh-5







<참조>

> 한글: https://recoiljs.org/ko/



Recoil

A state management library for React.

recoiljs.org

> Awesome Recoil: https://github.com/nikhil-malviya/awesome-recoil



GitHub - nikhil-malviya/awesome-recoil: A curated list of Recoil libraries, code snippets, best practices, benchmarks and resour

A curated list of Recoil libraries, code snippets, best practices, benchmarks and resources. - GitHub - nikhil-malviya/awesome-recoil: A curated list of Recoil libraries, code snippets, best practi...

github.com

> 2021 libraries & React state mangement

https://dev.to/sfeircode/my-go-to-react-libraries-for-2021-4k1



My go-to React libraries for 2021

I’ve been working on React apps for more than 3 years now and I’ve used tons of libraries to build va...

dev.to

https://dev.to/workshub/state-management-battle-in-react-2021-hooks-redux-and-recoil-2am0



State Management Battle in React 2021: Hooks, Redux, and Recoil

Introduction: Over the years, the massive growth of React.JS has given birth to different...

dev.to

> State Management 분류

   Flux: Redux, zustand

   Atomic: Jotai, recoil

   Proxy: mobx, valtio, overmind

https://velog.io/@gtah2yk/%ED%94%84%EB%A1%A0%ED%8A%B8%EC%97%94%EB%93%9C-%EC%83%81%ED%83%9C%EC%97%90-%EA%B4%80%ED%95%9C-%EC%A0%95%EB%A6%AC-%EA%B8%80



프론트엔드 상태에 관한 정리 글

프론트엔드 개발에서 짜증나는건 상태관리 부분이다.몇 가지 좋은 글이 많아서 요약겸 정리를 하면 좋을 것 같다 생각이 든다.https://leerob.io/blog/react-state-management리액트 상태 관리의 역사를 다루

velog.io



> Zustand vs Redux vs Jotai vs Recoil
소스: https://github.com/redhwannacef/youtube-tutorials/blob/main/react-state-management/README.md

https://www.youtube.com/watch?v=BaEWIbxZKco

posted by 윤영식
2021. 9. 3. 15:22 React/Start React

react-query를 사용해 본다. 기능

  • 캐싱 기능: fresh, fetching, stale, inactive, delete 상태
    • stale 상태가 받은 데이터를 캐싱한 상태이다
  • QueryClientProvider 설정을 통해 useQuery 훅에 QueryClient를 전달한다.
  • 조회
    • const { data, isLoading, status, error, isFetching } = useQuery(queryKey, queryFunction, options) 호출
    • queryKey는 문자열, 배열이 가능하고 캐싱하는 키로 사용한다.
    • queryFuction은 promise를 반환한다.
    • isLoading: 캐시데이터 없음. 데이터 요청중 true
    • isFetching: 캐시데이터 유무와 상관 없음. 데이터 요청중 true
  • 생성/수정/삭제
    • const { mutate } = useMutation(queryFunction, options);
    • mutate(data, callbacks);
  • 캐싱 무효화
    • const queryClient = useQueryClient();
    • queryClient.invalidateQuries(key);





설치 및 설정

react-query를 설치한다.

$> npm install react-query

apps/tube-csr/src/main.tsx에 react-query의 provider를 설정한다. 그리고 ReactQuery의 DevTool도 설치한다.

// main.tsx
import { StrictMode } from 'react';
import * as ReactDOM from 'react-dom';

import { QueryClient, QueryClientProvider } from 'react-query';
import { ReactQueryDevtools } from 'react-query/devtools';

import App from './app/app';

const queryClient = new QueryClient();

ReactDOM.render(
  <StrictMode>
    <QueryClientProvider client={queryClient}>
      <App />
      <ReactQueryDevtools />
    </QueryClientProvider>
  </StrictMode>,
  document.getElementById('root')
);

 ReactQuery DevTool



Custom Hook 만들기 및 api 패키지 구성

useQuery를 통해 custom Hook을 만들 수 있다. useQuery 사용시 Typescript에 대한 타입정의를 하자. api 패키지를 별도로 생성하고, dog.api.ts 파일을 생성한다. api custom Hook과 type 파일을 별도로 모아 둔다

$> nx g @nrwl/react:lib api

libs/api/src/lib 폴더 밑에 dog.api.ts 파일을 생성하고, react-query 의 custom Hook을 만든다.

// dog.api.ts

import { useQuery } from 'react-query';

import { httpService } from '@rnn-stack/core';

export function useDogList() {
  return useQuery<{ message: string[]; status: string }, Error>('dog-list', () =>
    httpService
      .get('https://dog.ceo/api/breeds/list')
      .toPromise()
      .then((response: any) => response)
  );
}

dog.api.ts 파일을 libs/api/src/index.ts 에 export 추가한다.

export * from './lib/api';

export * from './lib/api/dog.api';



이제 apps/tube-csr/src/app/dog.tsx 에서 사용해 본다. 기존 코드는 주석 처리하고 useDogList 라는 custom Hook을 사용한다.

useState, useEffect 사용하지 않고 custom Hook을 별도로 작성하였다.

  • 코드가 간결해 졌다.
  • 역할 분리가 잘 되었다.
  • api는 여러곳에서 공통으로 사용하므로 위치투명하게 api 패키지로 이동하였다.
    • import { useDogList } from "@rnn-stack/api";
// dog.tsx
import { List } from 'antd';
import { useDogList } from '@rnn-stack/api';

function DogList() {
  // const [dogList, setDogList] = useState<string[]>([]);
  // useEffect(() => {
    // httpService.get('https://dog.ceo/api/breeds/list').subscribe((response: any) => {
    //   console.log('axios observable response:', response);
    //   setDogList(response.message);
    // });
  // }, []);

  const { isLoading, data, error } = useDogList();

  if (isLoading || !data) {
    return <span>loading...</span>;
  }

  if (error) {
    return <span>Error: {error.message}</span>;
  }

  return (
    <List
      header={<div>Header</div>}
      footer={<div>Footer</div>}
      bordered
      dataSource={data.message}
      renderItem={(item: string) => <List.Item>{item}</List.Item>}
    />
  );
}

export default DogList;



현재는 각 라이브러리의 쓰임세와 구조에 대해서 보고 있다. Production에 사용하려면 좀 더 다음어야 할 것으로 보인다. 다음은 상태관리를 위하여 recoil을 적용해 보자.



소스: https://github.com/ysyun/rnn-stack/releases/tag/hh-4



<참조>

>ReactQuery에 대한 장점을 잘 설명준다.

https://swoo1226.tistory.com/216



[React-Query] 리액트로 비동기 다루기

react에서 비동기를 다루는 방법은 다양하다. javascript 언어니까 당연히 Promise, async & await으로 처리가 가능하다. redux를 사용하고 있다면, redux saga, thunk 등 다양한 미들웨어가 제공된다. 하지만 이..

swoo1226.tistory.com



> react-query & typescript: https://tkdodo.eu/blog/react-query-and-type-script



>  react hook & rxjs: https://nils-mehlhorn.de/posts/react-hooks-rxjs



React Hooks vs. RxJS

Here's why React Hooks are not reactive programming and how you can use RxJS knowledge from Angular in React

nils-mehlhorn.de



> hooks: https://twitter.com/tylermcginnis/status/1169667360795459584

  • useState: Persist value between renders, trigger re-render
  • useRef: Persist value between renders, no re-render
  • useEffect: Side effects that run after render
  • useReducer: useState in reducer pattern
  • useMemo: Memoize value between renders
  • useCallBack: Persist ref equality between renders



> hook lifecycle: https://medium.com/doctolib/how-to-replace-rxjs-observables-with-react-hooks-436dc1fbd324



How to replace RxJS observables with React hooks

As we saw in one of our previous articles, Doctolib is trying to help our new joiners to ramp up faster on our stack. One of the hardest…

medium.com



posted by 윤영식
2021. 8. 28. 12:24 React/Start React

React 외에 애플리케이션 개발을 위한 라이브러리를 설치한다.













UI Components

PrimeReact, EUI, MaterialUI, AntD 검토후 소스레벨 최신으로 반영하고 있고, 다양한 비즈니스 UX 대응 가능한 AntD를 선택한다.

// UI Component
$> yarn add antd

// Icon
$> yarn add @ant-design/icons

AntD의 스타일을 apps/tube-csr/src/styles.scss에 import 하고, app.tsx에 AntD의 Button 컴포넌트를 테스트 해본다. styles.scss는 글로벌 스타일로 apps/tube-csr/project.json 환경파일에 설정되어 있다.

// styles.scss
@import 'antd/dist/antd.css';


// app.tsx
import { Button } from 'antd';

import styles from './app.module.scss';

export function App() {
  return (
    <div className={styles.app}>
      <Button type="primary">Primary Button</Button>
      <Button>Default Button</Button>
      <Button type="dashed">Dashed Button</Button>
      <br />
      <Button type="text">Text Button</Button>
      <Button type="link">Link Button</Button>
    </div>
  );
}

export default App;

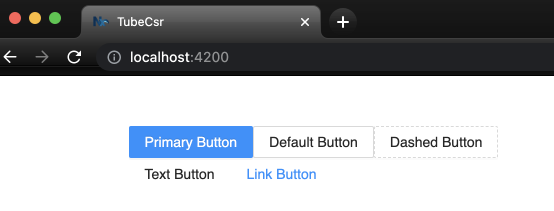

테스트 서버를 수행하고 확인해 본다.

$> nx serve tube-csr





라우터 설치

CSR의 Router를 위한 react-router, react-router-dom을 설치한다.

$> yarn add react-router react-router-dom





Ajax를 위한 라이브러리 설치

Client/Server 모두 사용할 수 있는 Axios 를 설치하고 rxjs를 통해 api 를 제어할 것이다.

$> yarn add axios



테스트 프로그램 작성

// dog.tsx
import { List } from 'antd';
import Axios, { AxiosResponse } from 'axios';
import { useEffect, useState } from 'react';

function DogList() {
  const [dogList, setDogList] = useState<string[]>([]);

  useEffect(() => {
    Axios.get('https://dog.ceo/api/breeds/list').then((result: AxiosResponse) => {
      setDogList(result.data.message);
    });
  }, []);

  return (
    <List
      header={<div>Header</div>}
      footer={<div>Footer</div>}
      bordered
      dataSource={dogList}
      renderItem={(item: string) => <List.Item>{item}</List.Item>}
    />
  );
}

export default DogList;


// app.tsx 에 추가
<DogList />

axios의 처리에 대해 rxjs 라이브러리를 같이 사용해 본다.

$> yarn add rxjs

axios와 rxjs의 Observable을 사용한 라이브러리를 구현한다. 라이브러리는 NX의 libs 폴더 밑으로 생성한다.

$> nx g @nrwl/react:lib core

// 실행을 하면 루트의 libs/core 밑으로 package가 생성된다.

libs/core/src밑으로 ajax 폴더를 생성하고 http.service.ts 파일을 생성한다.

  • Axios와 Observable을 조합
  • Axios cancel 적용
// libs/core/src/lib/ajax/http.service.ts
/* eslint-disable @typescript-eslint/no-explicit-any */
import axios, {
  AxiosError,
  AxiosInstance,
  AxiosPromise,
  AxiosRequestConfig,
  AxiosResponse,
  CancelTokenSource,
} from 'axios';
import { Observable, Observer } from 'rxjs';

// sample url: https://jsonplaceholder.typicode.com/users
interface RequestArgs {
  method: HttpMethod;
  url: string;
  queryParams?: any;
  payload?: any;
}

enum HttpMethod {
  GET = 'GET',
  POST = 'POST',
  PUT = 'PUT',
  PATCH = 'PATCH',
  DELETE = 'DELETE',
}

export class HttpService {
  private httpClient!: AxiosInstance;
  private cancelTokenSource!: CancelTokenSource;
  private options!: AxiosRequestConfig;
  private completed!: boolean;

  get<T>(url: string, queryParams?: any, options: AxiosRequestConfig = {}): Observable<T> {
    this.setOptions(options);
    return this.executeRequest<T>({ method: HttpMethod.GET, url, queryParams });
  }

  post<T>(url: string, payload: any, options: AxiosRequestConfig = {}): Observable<T> {
    this.setOptions(options);
    return this.executeRequest<T>({
      method: HttpMethod.POST,
      url,
      payload,
    });
  }

  put<T>(url: string, payload: any, options: AxiosRequestConfig = {}): Observable<T> {
    this.setOptions(options);
    return this.executeRequest<T>({
      method: HttpMethod.PUT,
      url,
      payload,
    });
  }

  patch<T>(url: string, payload: any, options: AxiosRequestConfig = {}): Observable<T> {
    this.setOptions(options);
    return this.executeRequest<T>({
      method: HttpMethod.PATCH,
      url,
      payload,
    });
  }

  delete<T>(url: string, options: AxiosRequestConfig = {}): Observable<T> {
    this.setOptions(options);
    return this.executeRequest<T>({
      method: HttpMethod.DELETE,
      url,
    });
  }

  cancel(forcely = false): void {
    if (!this.completed || forcely) {
      this.cancelTokenSource.cancel(`${this.options.url} is aborted`);
    }
  }

  private setOptions(options: AxiosRequestConfig = {}): void {
    if (this.options) {
      this.options = { ...this.options, ...options };
    } else {
      this.options = options;
    }
    this.cancelTokenSource = axios.CancelToken.source();
    this.httpClient = axios.create({ ...options, cancelToken: this.cancelTokenSource.token });
    this.completed = false;
  }

  private executeRequest<T>(args: RequestArgs): Observable<T> {
    const { method, url, queryParams, payload } = args;
    let request: AxiosPromise<T>;
    switch (method) {
      case HttpMethod.GET:
        request = this.httpClient.get<T>(url, { params: queryParams });
        break;
      case HttpMethod.POST:
        request = this.httpClient.post<T>(url, payload);
        break;
      case HttpMethod.PUT:
        request = this.httpClient.put<T>(url, payload);
        break;
      case HttpMethod.PATCH:
        request = this.httpClient.patch<T>(url, payload);
        break;
      case HttpMethod.DELETE:
        request = this.httpClient.delete<T>(url);
        break;
    }

    return new Observable<T>((observer: Observer<T>) => {
      request
        .then((response: AxiosResponse) => {
          observer.next(response.data);
        })
        .catch((error: AxiosError | Error) => {
          this.cancel();
          observer.error(error);
          if (axios.isAxiosError(error)) {
            console.log(error.code);
            if (error.response) {
              console.log(error.response.data);
              console.log(error.response.status);
              console.log(error.response.headers);
            }
          } else {
            console.log(error.message);
          }
        })
        .finally(() => {
          this.completed = true;
          observer.complete();
        });
    });
  }
}

export const httpService = new HttpService();

다음으로 apps/tube-csr/src/app/dog.tsx에 테스트 코드를 입력한다. httpService를 import할 때 from 구문이 Local file system에 있다하더라도 마치 node_modules에서 import하는 것처럼 위치투명성을 보장한다. 이는 루트에 위치한 tsconfig.base.json 파일에 lib 생성할 때 자동 등록된다.

// dog.tsx

import { useEffect, useState } from 'react';

import { List } from 'antd';
// import Axios, { AxiosResponse } from 'axios';

import { httpService } from '@rnn-stack/core';

function DogList() {
  const [dogList, setDogList] = useState<string[]>([]);

  useEffect(() => {
    httpService.get('https://dog.ceo/api/breeds/list').subscribe((response: any) => {
      console.log('axios observable response:', response);
      setDogList(response.message);
    });
    // Axios.get('https://dog.ceo/api/breeds/list').then((result: AxiosResponse) => {
    //   setDogList(result.data.message);
    // });
  }, []);

  return (
    <List
      header={<div>Header</div>}
      footer={<div>Footer</div>}
      bordered
      dataSource={dogList}
      renderItem={(item: string) => <List.Item>{item}</List.Item>}
    />
  );
}

export default DogList;

tsconfig.base.json

{
  "compileOnSave": false,
  "compilerOptions": {
    "rootDir": ".",
    "sourceMap": true,
    "declaration": false,
    "moduleResolution": "node",
    "emitDecoratorMetadata": true,
    "experimentalDecorators": true,
    "importHelpers": true,
    "target": "es2015",
    "module": "esnext",
    "lib": ["es2017", "dom"],
    "skipLibCheck": true,
    "skipDefaultLibCheck": true,
    "baseUrl": ".",
    "paths": {
      "@rnn-stack/core": ["libs/core/src/index.ts"]   <== 요놈
    }
  },
  "exclude": ["node_modules", "tmp"]
}

다음 포스팅에서 계속 진행...



소스: https://github.com/ysyun/rnn-stack/releases/tag/hh-3



Release hh-3 · ysyun/rnn-stack

hh-3 add libraries and http.service.ts

github.com





posted by 윤영식
2021. 8. 25. 15:40 React/Start React

NXAngular/CLI를 확장하여 Typescript기반의 멀티 애플리케이션 및 노드 패키지개발을 위한 환경을 제공한다. 또한 Plugin 기반으로 React, NextJS, NestJS와 같은 프레임워크와 노드환경 확장을 통해 FullStack개발을 지원한다.



목적

  • Case1: SPA/CSR의 React 애플리케이션 생성 + NestJS 기반 노드서버 생성
  • Case2: SSR을 위한 NextJS기반 애플리케이션 생성
  • Case1과 2의 두가지 애플리케이션에 대해 비교 테스트 진행하여 성능 이점과 차이점을 비교한다.



로컬에 새로운 환경 구성하기

NodeJS기반 테스트 환경 구축시 NodeJS버전을 변경하며 사용할 수 있도록 Local PC에 nvm (Node Version Manager)를 설치한다. Windows는 관련 링크를 참조하여 설치한다.

curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.35.3/install.sh | bash

NodeJS LTS버전을 nvm을 통해 설치하고 사용 설정한다.

$> nvm install v14.18.0
$> nvm use 14.18.0

소스 폴더로 이동을 하면 지정한 node version으로 nvm을 통해 switching 하고 싶다면 폴더에 .nvmrc 파일을 생성하고 "14.18.0" 버전을 명시하고, 로그인 사용자 .zshrc 또는 .bashrc 에 하기 사항을 설정한다. Gist 소스 참조

#! /usr/bin/env zsh

# Ref: https://github.com/creationix/nvm#calling-nvm-use-automatically-in-a-directory-with-a-nvmrc-file
# place this after nvm initialization!

autoload -Uz add-zsh-hook

# Function: load-nvmrc
load-nvmrc() {
    local _CUR_NODE_VER="$(nvm version)"
    local _NVMRC_PATH="$(nvm_find_nvmrc)"

    if [[ -n "${_NVMRC_PATH}" ]]; then
        local _NVMRC_NODE_VER="$(nvm version "$(cat "${_NVMRC_PATH}")")"

        if [[ "${_NVMRC_NODE_VER}" == 'N/A' ]]; then
            local compcontext='yn:yes or no:(y n)'
            vared -cp "Install the unmet version ($(cat "${_NVMRC_PATH}")) in nvm (y/n) ?" _ANSWER
            if [[ "${_ANSWER}" =~ '^y(es)?$' ]] ; then
                nvm install
            fi
        elif [[ "${_NVMRC_NODE_VER}" != "${_CUR_NODE_VER}" ]]; then
            nvm use
        fi
    elif [[ "${_CUR_NODE_VER}" != "$(nvm version default)" ]]; then
        echo -e "Reverting to the default version in nvm"
        nvm use default
    fi
}

add-zsh-hook chpwd load-nvmrc
load-nvmrc



NX 개발환경 구성을 위한 글로벌 패키지를 설치한다. Typescript는 v4.3.5 이상을 사용한다.

$> npm i -g @angular/cli@latest
$> npm i -g @nrwl/cli@latest
$> npm i -g yarn@latest



NX 개발환경 생성하기

npx 명령으로 개발환경 생성. RNN Stack에서 RNN은 React NestJS NextJS 을 합친 것이다. React Application의 명칭은 "tube-csr" 이다.

반드시 latest 버전으로 설치한다.

$> npx create-nx-workspace@latest

선택하기
  ✔ Workspace name (e.g., org name)     · rnn-stack
  ✔ What to create in the new workspace · react
  ✔ Application name                    · tube-csr
  ✔ Default stylesheet format           · scss
  ✔ Use Nx Cloud? (It's free and doesn't require registration.) · No

$> cd rnn-stack



"tube-csr" 애플리케이션을 위한 Node서버로 NestJS 플로그인를 설치하고, "tube-api" 이름으로 서버를 생성한다.

Nx의 NestJS 플러그인 설치
$> yarn add -D @nrwl/nest@latest

생성
$> nx generate @nrwl/nest:app tube-api



다음으로 NX의 NextJS 플러그인을 설치한다. NextJS Application은 "tube-ssr" 이다.

설치
$> yarn add -D @nrwl/next@latest

생성
$> nx generate @nrwl/next:app tube-ssr
또는
$> nx g @nrwl/next:app tube-ssr

✔ Which stylesheet format would you like to use? · scss



NextJS 애플리케이션을 설치하면 sass-node버전을 v5.0.0이 설치된다. v4.14.1로 변경 사용한다. 5.0으로 사용시 컴파일 오류 발생하여 향후 패치되면 버전 업그레이드 함.

$> npm uninstall node-sass
$> npm install -D node-sass@4.14.1

tube-ssr 애플리케이션의 개발 서버 포트는 4300 으로 변경한다. workspace.json의 "tube-ssr"의 serve options설정에 포트 정보를 수정한다.





Nx 환경파일 재구성

애플리케이션과 라이브러리를 많이 만들다 보면 rnn-stack/workspace.json 파일안에 설정이 계속 추가된다. 가독성을 위하여 애플리케이션(라이브러리 포함) Nx의 환경설정을 프로젝트별 별도 파일로 분리한다. 분리후에는 애플리케이션이나 라이브러리 생성시 자동으로 "project.json" 파일로 분리가 된다.

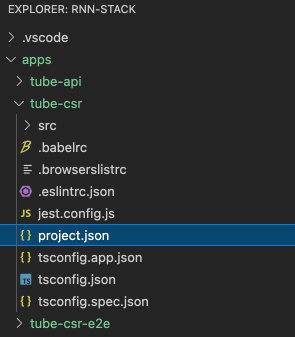

각 애플리케이션 root 폴더에 "project.json" 파일을 생성하고 workspace.json의 프로젝트별 설정 정보를 옮긴다. workspace.json에는 애플리케이션의 위치정보로 수정하면 컨벤션에 의해 project.json을 인지한다.

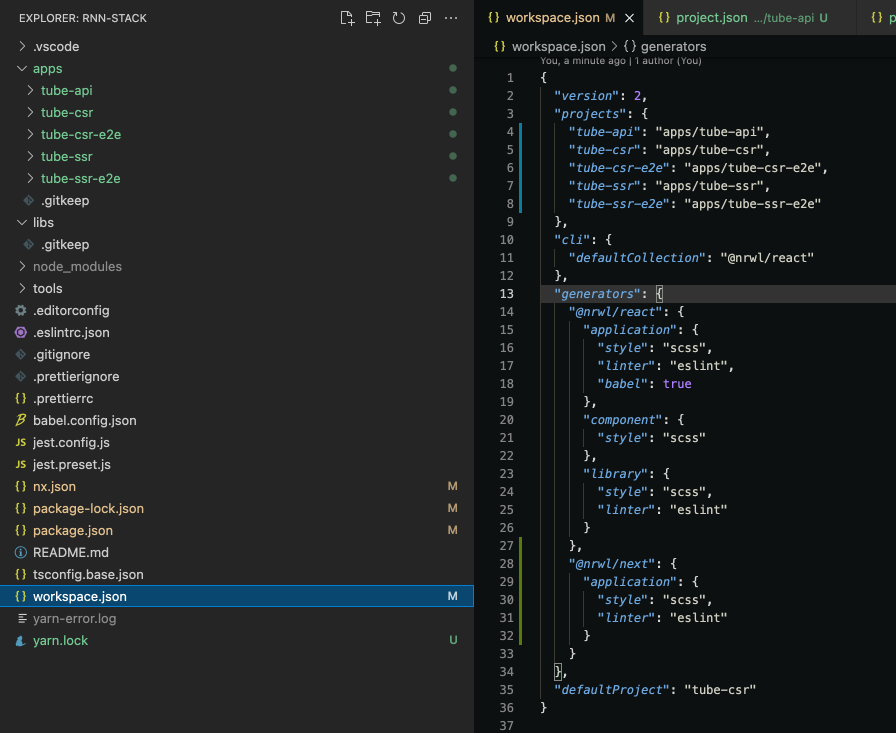

workspace.json은 애플리케이션 위치를 표현한다.

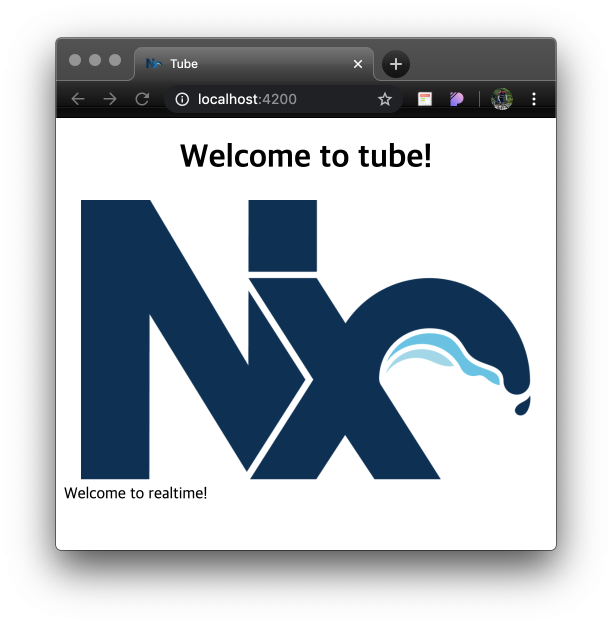

테스트하기

"tube"라는 React 애플리케이션을 Dev Server기반으로 실행하고, "realtime"이라는 NextJS 프렘워크기반 노드 서버를 실행한다.

  • React Application: http://localhost:4200/
  • NextJS Application: http://localhost:4300/
React Single Page Application
$> nx serve tube-csr

NextJS Application with Server
$> nx serve tube-ssr



Prettier 코드 포멧터 설정하기

MS Code 편집기를 기준으로 prettier를 설정한다.

  • rnn-stack 루트 폴더에 .prettierrc파일을 생성한다.
  • MS Code를 위한 Prettier Plugin을 설치한다.
  • .vscode/settings.json 에 prettier 옵션을 설정한다. settings.json 파일이 존재하지 않다면 생성후 설정한다.
  • .vscode/extensions.json의 recommandation으로 prettier를 설정한다.

.prettierrc 내역

{
    "printWidth": 120,
    "singleQuote": true,
    "useTabs": false,
    "tabWidth": 2,
    "semi": true,
    "bracketSpacing": true
}

. vscode/settings.json 내역

{
    "editor.formatOnPaste": true,
    "editor.formatOnType": true,
    "editor.formatOnSave": true,
    "editor.defaultFormatter": "esbenp.prettier-vscode",
    "[typescript]": {
        "editor.defaultFormatter": "esbenp.prettier-vscode"
    },
    "[javascript]": {
        "editor.defaultFormatter": "esbenp.prettier-vscode"
    },
    "[scss]": {
        "editor.suggest.insertMode": "replace",
        "editor.defaultFormatter": "esbenp.prettier-vscode"
    },
    "[html]": {
        "editor.suggest.insertMode": "replace",
        "editor.defaultFormatter": "esbenp.prettier-vscode"
    }
}

.vscode/extensions.json 내역

{
  "recommendations": [
    "esbenp.prettier-vscode",
    "nrwl.angular-console",
    "firsttris.vscode-jest-runner",
    "dbaeumer.vscode-eslint"
  ]
}



소스

https://github.com/ysyun/rnn-stack/releases/tag/hh-2



참조

posted by 윤영식
2021. 8. 25. 10:48 React/Start React

리액트 프로젝트를 위해 조사해봐야할 항목에 대해서 정리해 본다. 하기 구성에 대해 소스레벨의 준비과정을 작성해 본다.



개발환경

  • micro-frontend를 지원하는 환경
  • mono-repo기반 multi application을 개발할 수 있는 환경
  • Nx.dev for React
    • 멀티 애플리케이션 개발 및 애프리케이션별 번들링
    • 라이브러리의 위치 투명성 보장 및 배포



구조 설계

  • 1Layer: 애플리케이션
    • Layout: Feature 를 다루는 영역을 분할
    • Feature: UI + Data-Access 를 조합하여 업무 단위 화면을 구성
  • 2Layer: 업무 라이브러리
    • UI: Layout, Feature의 부분을 담당하는 업무 컴포넌트
    • Data-Access: API 호출 및 Data Caching
    • Data-Type: Frontend - Backend간 데이터 타입 및 vadliation
    • State: UI 상태 저장 및 전파
  • 3Layer: 공용 라이브러
    • Component: 사용자 정의 요소 컴포넌트 및 랩퍼
    • Chart: 차트 및 랩퍼
    • Utils: 유틸리티들
  • 4Layer: package.json
    • AntD, PrimeReact, MaterialUI, Boostrap와 같은 CSS + Component Framework
    • Redux, Mobx, Recoil 과 같은 state
    • moment, date-fns 같은 date
    • immer 같은 immutable state
    • react-use 같은 Hooks
    • react-query 같은 data api
    • rxjs 같은 reactiv library



고려 사항

  • Elagant Code Base 유지
    • Code Convention
    • TSLint
    • Typescript
  • Unit Test Code
    • commit 전에 Unit Test 수행
  • Loose Coupling을 위한 UI Biz Feature, UI Componnet, Library 관계 정립





to be continue...

posted by 윤영식
2018. 12. 13. 16:39 Angular/Architecture

Angular 프로젝트를 위한 구조 설계 요건에 대해 알아본다.


  - 프레임워크 선택 고려 사항

  - 개발 생산성과 유지 보수성을 높일 수 있는 방안

  - 참조 문서와 소스

    + Angular Enterprise Architecture pattern 문서

    + 해당 문서의 예제 소스




프레임워크 선택 고려 사항


프레임워크는 잘 정돈된 놀이터와 같아 기구를 타고 놀면 된다. 하지만 라이브러리의 경우는 툴박스와 같아서 박스안에는 망치, 드라이버, 못같은 것만 있다. 그럼 놀 것을 어떻게 만들지는 도구를 사용하는 사용자의 몫이다. 현재 UI 프레임워크/라이브러리는 Angular, React, Vue 등이고 풀스택으로는 Meteor를 선택해서 사용하고 있다. Angular 프레임워크와 React UI 라이브러리 또는 Meteor 선택시 고려사항을 개인의견으로 간략히 정리한다.


Angular Framework

  - 대규모 협업 팀에 유리: 대략 10명이상으로 HTML Publisher와 Javascript 개발자가 분리되어 있을 경우

  - JQuery가 low level의 javascript로 개발해 오던 개발자들이 접근하기에 수월하다고 판단함

  - Typescript, RxJS 반드시 알아야 한다.


React Library

  - HTML Publisher와 Javascript 개발을 같이하는 스타트업 또는 프론앤드 개발자에게 유리

  - 원하는 것들을 선택해 적용할 수 있다.


Meteor

  - FullStack 으로서 javascript가지고 전부 개발하고 싶을 경우

  - 아이디어를 빠르게 구현하고 검증 받고 싶을 경우

  - UI는 Angular, React, Vue 등으로 선택해 사용할 수 있으나, React가 적합하다 판단



그러나 어떤 것을 선택하든 공통적으로 고려해야 하는 사항으로 애플리케이션 아키텍쳐이다. 이에 대한 좋은 영상이 있어 보기를 권한다.




애플리케이션 아키텍쳐



위의 영상을 정리해 보면 다음과 같다.

  - Layered Architecture 구성

  - 역할 분담

    + Module: 업무 최소 단위, 하나를 제거해도 다른 것에 영향을 주지 않는 단위, Module은 Sandbox만 알뿐이다.

    + Sandbox: Module은 Sandbox를 통해 Application Core나 Base Library를 접근한다.

         - 일관성을 유지시킴

         - 시큐리티 가드 역할

         - 공통 Interface 역할

    + Application Core: Module을 관리(Control) 한다.

         - Module의 Life Cycle을 담당한다.

         - Module 간 통신을 담당한다 (inter-module communication)

         - Module을 직접 가져다 쓰지 않고, Sandbox의 공통 API를 통해 명령을 내리고, 듣는다.

         - General error handling

         - Extension을 통해 Application core기능을 확장한다.



   + Extension 확장

       - Error handling

       - Ajax communication: 공통 Format (request/response) 통신, 서버 오류 관리

       - New module capabilities

       - General Utils

       - What you want

    + Base Library

       - 개발자들이 직접 base library를 건드리게 하지 말자. 나중에 바뀔 수 있다.

       - Browser normalization

       - General purpose utilities: Paser/serializer, Object / DOM manipulation, Ajax Communication

       - low-level extension 제공: application extension처럼 base library를 확장한 것들을 제공한다.




정리

  - Base Library만이 사용중인 브라우저를 알고 있다. 아키텍쳐의 다른 layer에서 알 필요가 없다.

  - Application Core만이 사용중인 Base Library를 알고 있다. 아키텍쳐의 다른 layer에서 알 필요가 없다.

  - Module은 Sandbox의 존재외에는 아무것도 모른다. 아키텍쳐의 나머지에 대해선 아무것도 모른다.


장점

  - 하나의 프레임워크상에서 서로 다른 멀티 애플리케이션을 만들 수 있다. 즉, 기존의 컴포넌트를 재사용함으로서 시간을 줄일 수 있다.

  - 느슨한 연결(loose coupling)으로 인해 모듈 단위 테스트가 가능해짐.

  - 확장 가능한 자바스크립트 아키텍쳐는 하나의 블록을 교체한다고 해도 두려워 할 필요가 없는 상태가 되어야 한다. 즉, 이를 달성할 수 있다.




유지 보수성 높이기


유지보수가 좋은 코드는 다음의 특성을 갖는다.

  - 직관적이다. Intuitive

  - 코드 이해가 쉽다 Understable

  - 적용하기 쉽다 Adaptable

  - 확장하기 쉽다 Extendable

  - 디버깅하기 쉽다 Debuggable


이를 위해 해야할 것들.
  - Code Style, Code Convention 지키기
  - Naming 잘 하기: 이름에 대한 길이에 대해 걱정하지 말자.
  - Javascript에서 css 핸들링 하지 말자
  - event object를 바로 다른 function의 argument로 넘기지 말고, 필요한 정보만을 준다.
  - 사용전 object undefined 체크
  - string 값들은 별도의 Config Data 객체에 담아서 사용한다.



  - 빌드 자동화 하자




posted by 윤영식
2018. 12. 4. 15:13 Meteor/React + Meteor

컴포넌트에 style을 직접 적용하는 대신, class를 적용해 본다.


  - meteor 기반에서 css 적용의 어려운 부분들

  - styled-component를 사용한 적용

  - 적용소스




styled-components 적용하기


meteor는 자체 builder를 통해 패키지를 빌드하는 관계로 webpack과 같은 custom 설정에 제약이 있어 보인다. 물론 잘 알지 못해서 아직 찾지 못했을 수도 있지만 다음과 같은 class 적용이 안된다.

  - import * as style from './link.scss': from 문구를 사용하지 못 한다. 나머지 다양한 class적용 방법도 잘 안되는 듯 하다.

  - import './link.scss' 만 사용가능하다. local 적용이 아닌 global 적용을 한다. <head> 태그에 prefix없이 들어간다.


Meteor의 제약사항을 고려하여 별도의 scss 파일 작성을 최대한 줄이고, 컴포넌트의 style을 확장하기 위해 styled-components를 사용토록 한다.

$ meteor npm install --save styled-components


imports/ui/sdk/eui/flexgroup.style.tsx 파일 을 생성한다.

  - 테스트로 확장 컴포넌트로 부터 받은 색을 적용해 본다.

  - props는 camelCase로 설정한다.

import styled from 'styled-components';

import { EuiFlexItem, EuiFlexGroup } from '@elastic/eui';


export const StyledWidthEuiFlexGroup = styled(EuiFlexGroup)`

  width: ${props => props.width || '100%'};

`;


export const StyledLongEuiFlexItem = styled(EuiFlexItem)`

  max-width: 400px;

  input {

    background: ${props => props.background || 'yellow'};  // 동적으로 bgcolor를 적용한다.

    color: white;

  }

`;


export const StyledShortEuiFlexItem = styled(EuiFlexItem)`

  max-width: 100px;

`;


AddLink.tsx에서 사용한다.

import { StyledLongEuiFlexItem, StyledShortEuiFlexItem } from '../../sdk/eui/flexgroup.style';


class AddLink extends React.Component<AddLinkProps, any> {

...

  makeForm = ({handleSubmit, submitting, pristine}) => {

    return (

      <form onSubmit={handleSubmit}>

        <EuiFlexGroup direction="row" gutterSize="s">

          <EuiFlexItem><EInput name="title" component="input" type="text" placeholder="Title" /></EuiFlexItem>

          <StyledLongEuiFlexItem background="red">

             <EInput name="url" component="input" type="text" placeholder="Url" />

          </StyledLongEuiFlexItem>

          <StyledShortEuiFlexItem>

            <EuiButton type="submit" fill disabled={submitting || pristine}>Add Link</EuiButton>

          </StyledShortEuiFlexItem>

        </EuiFlexGroup>

      </form>

    );

  }

...

}



Login.tsx에도 적용한다.

  - FlexGroup  의 width=600px으로 설정한다.

  - JPage, JRow를 설정한다. (아래에서 계속 개발)

import { JPage, JRow } from '../layouts/common.style';


export default class Login extends React.Component<LoginProps, LoginState> {

...

  makeForm = ({ handleSubmit, submitting, pristine }) => {

    return (

      <form onSubmit={handleSubmit}>

        <StyledWidthEuiFlexGroup width="600px" direction="row" gutterSize="s">

          <EuiFlexItem><EInput name="email" type="email" placeholder="Email" /></EuiFlexItem>

          <EuiFlexItem><EInput name="password" type="password" placeholder="Passowrd" /></EuiFlexItem>

          <StyledShortEuiFlexItem>

                <EuiButton type="submit" disabled={submitting || pristine}>Login</EuiButton>

          </StyledShortEuiFlexItem>

        </StyledWidthEuiFlexGroup>

      </form>

    );

  };


  public render() {

    return (

      <JPage>

        <JRow padding="10px" fontSize="20px">Login to short Link</JRow>

        <JRow>{this.state.error ? <p>{this.state.error} </p> : undefined}</JRow>

        <JRow><Form onSubmit={this.onLogin} render={this.makeForm} /></JRow>

        <JRow><Link to="/signup">Have a account?</Link></JRow >

      </JPage>

    );

  }

}


JPage와 JRow 컴포넌트를 imports/ui/layouts/common.style.ts 생성한다.

  - JPage는  padding

  - JRow는 flexbox의 row direction으로 설정한 컴포넌트이다.

  - 컴포넌트의 properties를 통해 값을 받아 동적으로 설정한다.

import styled from 'styled-components';


export const JPage = styled.div`

  display: block;

  position: relative;

  padding: 10px;

  height: 100%;

  width: 100%;

`;


export const JRow = styled.div`

  display: flex;

  justify-content: ${ props => props.align || 'flex-start' };

  align-items: ${ props => props.align || 'center' };

  width: ${ props => props.width || '100%' };

  padding: ${ props => props.padding || '5px' };

  font-size: ${ props => props.fontSize || '14px' };

`;



styled-components를 통해 얻을 수 있는 장점


  - 기존 컴포넌트의 style 확장을 컴포넌트 개념을 할 수 있다. 기존은 .css 작성

  - 일반 태그를 style을 동적으로 적용할 수 있는 컴포넌트로 만들어 React컴포넌트에서 Common 컴포넌트처럼 사용할 수 있다. 즉 Style만을 담당하는 컴포넌트임.




<참조>

- class 적용 방법들

- styled-components 홈페이지

posted by 윤영식
2018. 12. 3. 16:09 Meteor/React + Meteor

Ant Design 컴포넌트 또는 Elatstic UI 같은 컴포넌트 적용방법을 알아보자.


  - Ant Design 컴포넌트 적용

  - Elastic UI  컴포넌트 적용

  - 적용 소스




Final Form 에 Ant Design 컴포넌트 적용하기


적용하기-1 블로그에서 Antd을 설치했다. Ant Design의 Form을 사용하여 Login, SignOut, AddLink의 Input을 수정한다.

  - imports/ui/sdk/antd/antd-final-input.tsx 파일 생성

  -antd 의 input react 컴포넌트를  react-final-form의 input의 custom component로 설정한다. (third component support )

import * as React from 'react';

import { Input } from 'antd';

import { Field } from 'react-final-form';


// antd 의 react input component를 react-final-form에서 사용할 수 있는 custom component로 만듦

const AntdInput = ({input, ...rest}) => {

  return (

    <Input {...input} {...rest} />

  )

}


// 최종 애플리케이션에서 사용할 react-final-form 컴포넌트

const AInput = (props: any) => {

    return (

      <Field {...props} component={AntdInput} />

    );

}


export default AInput;


antd의 layout 컴포넌트은 Col, Row를 사용해서 레이아웃을 잡는다.

import { Row, Col, Button } from 'antd';

import AInput from '../sdk/antd/antd-final-input';


export default class Login extends React.Component<LoginProps, LoginState> {

...

  makeForm = ({ handleSubmit, submitting, pristine }) => {

    return (

        <form onSubmit={handleSubmit}>

          <Col span={4}><AInput name="email" type="email" placeholder="Email" /></Col>

          <Col span={4}><AInput name="password" type="password" placeholder="Passowrd" /></Col>

          <Col span={2}><Button type="primary" htmlType="submit" disabled={submitting || pristine}>Login</Button></Col>

        </form>

    );

  };


  public render() {

    return (

      <div>

        <h1>Login to short Link</h1>

        {this.state.error ? <p>{this.state.error} </p> : undefined}

        <Row gutter={5}>

          <Form onSubmit={this.onLogin} render={this.makeForm} />

        </Row>

        <Row gutter={5}>

          <Link to="/signup">Have a account?</Link>

        </Row>

      </div>

    );

  }

}



AddLink.tsx, Signup.tsx도 동일하게 바꾸어 본다.




Final Form에 Elastic UI 적용하기


eui(Elastic UI)는 Elastic Search의 React기반 오픈소스이다. Elastic Search의 Kibana에서 사용중이다. AntD대신 Eui를 적용해 본다.

eui는 yarn install 만 지원하는 관계로 Meteor에서 yarn을 사용하기 위해서 다음 과정을 최초 한번 설정한다.

$ meteor npm i -g yarn

$ meteor yarn info

yarn info v1.12.3


$ rm -rf node_modules (MS는 윈도우 명령으로)

$ rm package-lock.json


// package.json 내용 설치

$ meteor yarn


  - @elastic/eui 패키지 설치

  - css 설정

// eui는 npm install을 지원하지 않는다.

$ meteor yarn add  @elastic/eui


// client/main.tsx에서 import한다.

import '@elastic/eui/dist/eui_theme_light.css';


// client/theme.less 안은 import는 주석처리한다.

// @import '{}/node_modules/antd/dist/antd.less';


Lisk화면을 다음과 같이 전환한다.


react-final-form에 EuiFieldText (input tag) 컴포넌트를 적용한다.

  - imports/ui/sdk/eui/eui-final-input.tsx 파일 생성

import * as React from 'react';

import { EuiFieldText } from '@elastic/eui';

import { Field } from 'react-final-form';


const EuiInput = ({ input, ...rest }) => {

  return (

    <EuiFieldText {...input} {...rest} />

  )

}


const EInput = (props: any) => {

  return (

    <Field {...props} component={EuiInput} />

  );

}


export default EInput;


imports/ui/Info.tsx 에서 EuiPage 관련 컴포넌트로 레이아웃을 꾸민다.

  - EuiPageHeader, EuiPageContent로 나눔

  - 태그안의 정렬은 FlexBox가 적용된 EuiFlexGroup과 EuiFlexItem을 사용한다.

  - width, padding은 style일 직접 설정한다.

import {

  EuiFlexGroup, EuiFlexItem, EuiButton, EuiPage, EuiSpacer,

  EuiPageBody, EuiPageHeader,  EuiPageContent, EuiPageContentBody, EuiTitle

} from '@elastic/eui';


class Info extends React.Component<InfoProps, any> {

...

  render() {

    return (

      <EuiPage>

        <EuiPageBody>

          <EuiPageHeader>

              <EuiFlexGroup justifyContent="spaceBetween">

                <EuiFlexItem grow={1} style={{ paddingLeft: 20 }}>

                  <EuiTitle size="m"><h1>Add Link & List</h1></EuiTitle>

                </EuiFlexItem>

                <EuiFlexItem style={{ maxWidth: 130, paddingRight: 30 }}>

                  <EuiButton style={{ maxWidth: 100 }} onClick={this.onLogout}>Log out</EuiButton>

                </EuiFlexItem>

              </EuiFlexGroup>

          </EuiPageHeader>

          <EuiPageContent>

            <EuiPageContentBody>

              <EuiFlexGroup direction="column" justifyContent="spaceBetween">

                <EuiFlexItem style={{ maxWidth: 800 }}>

                  <AddLink />

                </EuiFlexItem>

                <EuiSpacer />

                <EuiFlexItem style={{ maxWidth: 400 }}>

                  {this.linkList()}

                </EuiFlexItem>

              </EuiFlexGroup>

            </EuiPageContentBody>

          </EuiPageContent>

        </EuiPageBody>

      </EuiPage>

    );

  }

}


imports/ui/pages/link/AddLink.tsx도 수정한다.

  - EuiFlexGroup으로 레이아웃 적용: flexbox direction은 row이다.

  - EInput 컴포넌트 적용

  - EuiButton 적용하기: type="submit" 설정

  - AntD적용 내용은 모두 주석처리한다.

import EInput from '../../sdk/eui/eui-final-input';

import { EuiButton, EuiFlexGroup, EuiFlexItem } from '@elastic/eui';



class AddLink extends React.Component<AddLinkProps, any> {

...

  makeForm = ({handleSubmit, submitting, pristine}) => {

    return (

      <form onSubmit={handleSubmit}>

        {/* <Col span={4}><AInput name="title" component="input" type="text" placeholder="Title" /></Col>

        <Col span={4}><AInput name="url" component="input" type="text" placeholder="Url" /></Col>

        <Col span={2}><Button type="primary" htmlType="submit" disabled={submitting || pristine}>Add Link</Button></Col> */}

        <EuiFlexGroup direction="row" gutterSize="s">

          <EuiFlexItem><EInput name="title" component="input" type="text" placeholder="Title" /></EuiFlexItem>

          <EuiFlexItem><EInput name="url" component="input" type="text" placeholder="Url" /></EuiFlexItem>

          <EuiFlexItem style={{ maxWidth: 100 }}>

            <EuiButton type="submit" fill disabled={submitting || pristine}>Add Link</EuiButton>

          </EuiFlexItem>

        </EuiFlexGroup>

      </form>

    );

  }


  public render() {

    return (

      // <Row gutter={5}>

        <Form onSubmit={this.handleSubmit} render={this.makeForm} />

      // </Row>

      );

  }

}


Link.tsx도 수정한다.

  - EuiButton 사이즈 small 설정

  - EuiButton minWidth 적용: default가 120px 이므로 overrriding을 minWidth: 40 을 설정한다

class Link extends React.Component<LinkProps, any> {

...

  public render() {

    const { link } = this.props;

    return (

      <li key={link._id}>

        <a href={link.url} target="_blank">{link.title}</a>

        <EuiButton size="s" style={{minWidth: 40, marginLeft: 10}} onClick={this.deleteLink}>x</EuiButton>

      </li>

    );

  }

}


Login.tsx, Signup.tsx도 eui 컴포넌트로 변경해 본다. 개인적으로 FlexBox를 많이 사용하는데 이에대한 컴포넌트 레벨 지원을 Eui가 제공하므로, 앞으로 Eui 컴포넌트를 사용한다. 다음은 style을 직접 적용하는 방식이 아니라 class 적용방법을 알아본다.




<참조>

- Ant Design React Component

- Elastic UI React Component

- Meteor에서 yarn 사용하기 - 마지막 답변 참조

posted by 윤영식
2018. 11. 30. 15:48 Meteor/React + Meteor

React의 route 설정을 리팩토링해보고, createRef() 를 사용하지 않고 form을 변경해 본다.


  - react-router v4에 맞는 redux 환경 재구성

  - react-final-form  적용하기

  - 사용자별 Link 목록 보여주기

  - 적용소스




React Router v4에 맞는 Redux 설정


react-router-redux는 react router v2와 v3에 맞는 패키지이고 react router v4에 맞는 connected-react-router로 교체해야 한다. recct-router-redux 설정 상태로는 redux action이 작동하지 않는다.

// 설치

$ meteor npm install --save connected-react-router

// 삭제

$ meteor npm uninstall --save react-router-redux

$ meteor npm uninstall --save @types/react-router-redux


imports/ui/store.ts 리팩토링

  - Routes.tsx의 browserHistory 를 store.ts로 옮김

  - connectRouter로 routerReducer를 생성

  - RouterAction, LocationChangeAction을 추가

import { createBrowserHistory } from 'history';

import { connectRouter, RouterAction, LocationChangeAction } from 'connected-react-router';


export const browserHistory = createBrowserHistory();


const rootReducer = combineReducers({

  router: connectRouter(browserHistory),

  links: linkReducer

});


export type RootState = StateType<typeof rootReducer>;


type ReactRouterAction = RouterAction | LocationChangeAction;

export type RootAction = ReactRouterAction | LinkAction;


imports/ui/Routes.tsx 리팩토링

  - react-router v4의 Router를 사용하지 않고, connected-react-router의 ConnectedRouter를 사용

  - 인자로 store.ts 에서 생성한 browserHistory를 사용

import { ConnectedRouter } from 'connected-react-router';

import store, { browserHistory } from './store';


export const Root = (

  <Provider store={store}>

    <ConnectedRouter history={browserHistory}>

      <Switch>

        <Route exact path="/" component={Login} />

        <Route path="/main" component={App} />

        <Route path="/signup" component={Signup} />

        <Route path="/links" component={InfoContainer} />

        <Route path="*" component={NotFound} />

      </Switch>

    </ConnectedRouter>

  </Provider>

);


이제 Redux Chrome Extension에서 LOCATION_CHANGE 액션을 볼 수 있다.




final-form 통해 입력


form 관련부분을 final-form으로 변경한다. React버전의 react-final-form을 사용한다.

$ meteor npm install --save final-form

$ meteor npm install --save react-final-form


로그인 화면부터 react-final-form으로 변경해 본다.

  - react-final-form의 Form, Field import

  - Form 의 onSubmit={this.onLogin}을 통해 입력한 values 객체를 받기, 보통 폼 필드의 name을 key로하여 json 객체를 받는다.

  - <input> 태그를 <Field> 태그로 변경

  - <button> 태그에 disabled 속성추가

  - 필요없는 부분 추석처리: React.createRef()

import * as React from 'react';

import { Link } from 'react-router-dom';

import { Meteor } from 'meteor/meteor';

import { Form, Field } from 'react-final-form';


export interface LoginProps {

  history: any;

}


export interface LoginState {

  error: string;

}


export default class Login extends React.Component<LoginProps, LoginState> {

  // email: any = React.createRef();

  // password: any = React.createRef();


  constructor(props) {

    super(props);

    this.state = {

      error: ''

    };

  }


  onLogin = ({email, password}) => {

    // e.preventDefault();

    // let email = this.email.current.value.trim();

    // let password = this.password.current.value.trim();

    if (!email || !password) {

      this.setState({error: 'Please input email and password both'});

      return;

    }

    Meteor.loginWithPassword({ email }, password, (err) => {

      if (err) {

        this.setState({ error: err.reason });

      } else {

        this.setState({ error: '' });

      }

    });

  }


  makeForm = ({ handleSubmit, submitting, pristine, values }) => {

    return (

      <form onSubmit={handleSubmit}>

        <Field name="email" component="input" type="email" placeholder="Email" required/>

        <Field name="password" component="input" type="password" placeholder="Passowrd"/>

        {/* <input type="email" ref={this.email} name="email" placeholder="Email" />

        <input type="password" ref={this.password} name="password" placeholder="Password" /> */}

        <button type="submit" disabled={submitting || pristine}>Login</button>

      </form>

    );

  };


  public render() {

    return (

      <div>

        <h1>Login to short Link</h1>

        {this.state.error ? <p>{this.state.error} </p> : undefined}

        <Form onSubmit={this.onLogin} render={this.makeForm} />

        <Link to="/signup">Have a account?</Link>

      </div>

    );

  }

}


Signup.tsx, AddLink.tsx 도 변경한다.




사용자별 Link 목록 보여주기


사용자를 추가하여 각 사용자가 등록한 목록만 보기 위해서 pub/sub 설정에서 userId  파라미터를 넘겨주어 본인 목록만 조회하여 publish 한다.

// imports/ui/Info.tsx 맨 하단의 subscribe시에 자신의 아이디를 파라미터로 보낸다.

export default compose(

  withTracker(() => {

    const connection = Meteor.subscribe('links', {userId: Meteor.userId()});

    return {

      links: Links.find().fetch(),

      loading: !connection.ready()

    };

  }),

  connect(mapProps)

)(Info);


imports/api/links.ts에서 userId를 파라미터로 find한다.

if (Meteor.isServer) {

  Meteor.publish('links', ({userId}) => {

    console.log('userId:', userId);

    if (!userId) {

      return this.ready();

    }

    return Links.find({owner: userId});

  });

  ...

}




<참조>

- connected-react-router 저장소

- react-final-form 소개 영상

posted by 윤영식
2018. 11. 28. 16:56 Meteor/React + Meteor

Meteor와 React 환경을 좀 더 Production에 가깝게 만들어 본다.


  - Insecure 제거 및 allow/deny 설정

  - React의 Refs에 대해 변경

  - Meteor methods/call 사용한 목록 조회

  - SimpleSchema 적용

  - 적용소스




Insecure 패키지 제거 및 Allow/Deny 설정


모든 컬렉션에 대한 자동 subscribe에 대한 autopublish 패키지는 이미 제거를 했고, 다음으로 insecure 패키지를 제거하여 컬렉션의 접근 권한을 제어하는 allow/deny를 설정한다.

$ meteor remove insecure


insecure를 제거하게 되면 read만 가능하고 update, delete, insert가 불가능하다. 따라서 권한부분은 서버에서 실행되기 때문에 allow/deny설정을 Meteor.isServer블럭안에서 해주어야 한다.

  - allow: true로 설정된 것만 가능하고 그외는 모두 불가능하다. (가능한 것이 적으면 allow 설정)

  - deny: true로 서정된 것만 불가능하고 그외는 모두 가능하다.  (불가능한 것이 적으면 deny 설정)

// api/links.ts

import { Meteor } from 'meteor/meteor';

import { Mongo } from 'meteor/mongo';


const Links = new Mongo.Collection('links');


if (Meteor.isServer) {

  Meteor.publish('links', () => Links.find());

  Links.allow({

    insert (userId: string, doc: any) {

      console.log('insert doc:', doc);

      return (userId && doc.owner === userId);

    },

    remove(userId: string, doc: any) {

     console.log('delete doc:', doc);

      return (userId && doc.owner === userId);

    }

  })

}

export default Links;


 allow에서 owner 아이디를 비교하므로 epic에서 owner 값을 설정한다.

// imports/ui/pages/link/link.epic.ts

const addLink: Epic = (

  action$,

  store

) =>

  action$.pipe(

    filter(isOfType(actions.ADD_REQUEST)),

    switchMap(action => {

      const { title, url } = action.payload;

      const owner = Meteor.userId();

      return insertCollection(Links, { title, url, owner, createdAt: new Date() })

    }),

  ...

);


userId는 로그인을 하게되면 이미 서버와 동기화 되어 서버가 가지고 있는 userId를 첫번째 파라미터로 넘겨준다. 두번째 파라미터 doc은 insert할 때 입력한 파라미터값 이고, remove의 doc은 저장된 몽고디비의 document이다.

// meteor run을 수행한 콘솔창에 찍힌다.

=> Meteor server restarted

I20181123-15:00:36.619(9)? insert doc: { title: 'google2',

I20181123-15:00:36.676(9)?   url: 'http://www.google.com',

I20181123-15:00:36.676(9)?   owner: 'AmMBJzZ33Nc8Bsqhe',

I20181123-15:00:36.676(9)?   createdAt: 2018-11-23T06:00:36.611Z }

I20181123-15:00:39.955(9)? remove doc: { _id: 'Zrb8jGSpt2AyRn4Q3',

I20181123-15:00:39.955(9)?   title: 'google2',

I20181123-15:00:39.955(9)?   url: 'http://www.google.com',

I20181123-15:00:39.955(9)?   owner: 'AmMBJzZ33Nc8Bsqhe',

I20181123-15:00:39.955(9)?   createdAt: 2018-11-23T06:00:36.611Z }




Form 입력의 React의 Refs 변경


React에서 DOM객체 접근 방법은 3가지 이고, string과  콜백펑션말고 16.3 버전이후 나온 createRefs()를 사용한다.

  - ref="string"

  - ref={callback-function}

  - createRefs()


DOM 객체를 받을 변수를 선언하고, ref={this.변수}로 할당한다. 값 접근은 this.변수.current 객체를 통한다.

// imports/ui/pages/Login.tsx

.. 중략 ..

export default class Login extends React.Component<LoginProps, LoginState> {

  email: any = React.createRef();

  password: any = React.createRef();


  constructor(props) {

    super(props);

    this.state = {

      error: ''

    };

  }


  onLogin = (e: any) => {

    e.preventDefault();


    let email = this.email.current.value.trim();

    let password = this.password.current.value.trim();

    Meteor.loginWithPassword({ email }, password, (err) => {

      if (err) {

        this.setState({ error: err.reason });

      } else {

        this.setState({ error: '' });

      }

    });

  }


  public render() {

    return (

      <div>

        <h1>Login to short Link</h1>

        {this.state.error ? <p>{this.state.error} </p> : undefined}

        <form onSubmit={this.onLogin}>

          <input type="email" ref={this.email} name="email" placeholder="Email" />

          <input type="password" ref={this.password} name="password" placeholder="Password" />

          <button>Login</button>

        </form>

        <Link to="/signup">Have a account?</Link>

      </div>

    );

  }

}


Signup.tsx과 AddLink.tsx도 동일하게 변경한다.




Meteor methods/call을 사용한 저장/삭제


imports/sdk/utils/ddp.util.ts 에 method call에 대한 observable 반환 메소드 추가

export function insertCall(methodName: string, params: any): Observable<RequestModel> {

  return from(new Promise((resolve, reject) => {

    Meteor.call(methodName, params, (error, result) => {

      if (error) {

        reject({ error: true, result: { ...error }, params: { ...params } });

      }

      if (typeof result === 'string' || typeof result === 'number') {

        resolve({ success: true, result, params: { ...params } });

      } else {

        resolve({ success: true, result: { ...result }, params: { ...params } });

      }

    });

  }));

}


export function removeCall(methodName: string, _id: string): Observable<RequestModel> {

  return from(new Promise((resolve, reject) => {

    Meteor.call(methodName, _id, (error, result) => {

      if (error) {

        reject({ error: true, result: { ...error }, params: { _id } });

      }

      if (typeof result === 'string' || typeof result === 'number') {

        resolve({ success: true, result, params: { _id } });

      } else {

        resolve({ success: true, result: { ...result }, params: { _id } });

      }

    });

  }));

}


imports/api/links.ts 에서 Meteor.methods를 추가한다.

if (Meteor.isServer) {

 ...

  Meteor.methods({

    insertLink(params: any) {

      if (!this.userId) {

        throw new Meteor.Error('Please login');

      }

      return Links.insert(params);

    },

    removeLink(_id: string) {

      if (!this.userId) {

        throw new Meteor.Error('Please login');

      }

      return Links.remove(_id);

    }

  });

}


imports/ui/pages/link/link.epic.ts 에서 collection 을 호출하지 않고, Meteor.call을 호출 한다. takeUntil은 브라우져 이동등을 할때 호출을 끊는 역할을 한다. 현재는 주석처리로 미구현상태임.

const addLink: Epic = (

  action$,

  store

) =>

  action$.pipe(

    filter(isOfType(actions.ADD_REQUEST)),

    switchMap(action => {

      const { title, url } = action.payload;

      const owner = Meteor.userId();

      return insertCall('insertLink', { title, url, owner, createdAt: new Date() })

      // return insertCollection(Links, { title, url, owner, createdAt: new Date() })

    }),

    map((response: RequestModel) => {

      if (response.error) {

        return actions.addLinkFailed({ ...response.result })

      }

      return actions.addLinkSuccess(response.result)

    }),

    // takeUntil(action$.pipe(

    //   filter(isOfType(actions.ADD_REQUEST))

    // ))

  );


const removeLink: Epic = (

  action$,

  store

) =>

  action$.pipe(

    filter(isOfType(actions.DELETE_REQUEST)),

    switchMap(action => {

      return removeCall('removeLink', action.payload);

      // return removeCollection(Links, action.payload);

    }),

    map((response: RequestModel) => {

      if (response.error) {

        return actions.removeLinkFailed({ ...response.result, ...response.params })

      }

      return actions.removeLinkSuccess(response.params._id);

    }),

    // takeUntil(action$.pipe(

    //   filter(isOfType(actions.ADD_REQUEST))

    // ))

  );




SimpleSchema 적용하기


Validation을 위해 simple schema 패키지를 설치한다.

$ meteor npm install --save simpl-schema


/imports/api/links.ts 에 schema를 정의한다.

import { Meteor } from 'meteor/meteor';

import { Mongo } from 'meteor/mongo';

import SimpleSchema from 'simpl-schema';


const Links = new Mongo.Collection('links');


if (Meteor.isServer) {

 ...

  const linkSchema = new SimpleSchema({

    title: {

      type: String,

      min: 3

    },

    url: {

      type: String

    },

    owner: {

      type: String

    },

    createdAt: {

      type: Date

    }

  });


  Meteor.methods({

    insertLink(params: any) {

      if (!this.userId) {

        throw new Meteor.Error('Please login');

      }

      try {

        linkSchema.validate(params);

        return Links.insert(params);

      } catch(e) {

        throw new Meteor.Error('no valid schema');

      }

    },

   ...

  });

}

export default Links;


account에 대한 validate도 정의해 본다. imports/api/ 폴더아래에 account-validate.ts 파일을 생성하고 server/main.ts에서 import한다.

// account-validate.ts

import { Meteor } from 'meteor/meteor';

import { Accounts } from 'meteor/accounts-base';

import SimpleSchema from 'simpl-schema';


if (Meteor.isServer) {

  Accounts.validateNewUser((user) => {

    const email = user.emails[0].address;


    try {

      new SimpleSchema({

        email: {

          type: String,

          regEx: SimpleSchema.RegEx.Email

        }

      }).validate({ email });

    } catch(e) {

      throw new Meteor.Error(400, e.message);

    }


    return true;

  });

}


// server/main.ts

import { Meteor } from 'meteor/meteor';

import '../imports/api/links';

import '../imports/api/account-validate';


Meteor.startup(() => {

});


// Singup.tsx 파일에 테스트를 위해 noValidate를 추가한다.

<form onSubmit={this.onCreateAccount} noValidate>




<참조>

React createRefs() 사용하기

- Meteor methods/call 사용하기

posted by 윤영식
2018. 11. 22. 14:37 Meteor/React + Meteor

Meteor의  accounts-password를 패키지를 통한 로그인 환경 만들기를 해본다.


  - accounts-password 패키지를 통한 미티어 사용자 가입/로그인 사용 방법 알기

  - React Router 설정

  - 미티어의 Tracker.autorun을 통해 reactivity computation과 resource 사용 방법 알기

  - 소스코드




미티어 사용자 관리


accounts-password 패키지를 설치하고, 가입 및 로그인 화면을 만든다.

$ meteor add accounts-password

$ meteor npm install --save bcrypt

// Link 사용을 위해

$ meteor npm install --save react-router-dom


Signup.tsx와 Login.tsx 생성한다.

  - email, password의 값을 읽기 위하여 typescript방식의 public refs를 정의한다.

  - Accounts.createUser를 통해 사용자를 등록한다.

// Singup.tsx

import * as React from 'react';

import { Link } from 'react-router-dom';

import { Accounts } from 'meteor/accounts-base'


export interface SignupProps {}

export default class Signup extends React.Component<SignupProps, any> {

  // @see https://goenning.net/2016/11/02/strongly-typed-react-refs-with-typescript/

  public refs: {

    email: HTMLInputElement,

    password: HTMLInputElement

  }


  constructor(props) {

    super(props);

    this.state = {

      error: ''

    };

  }


  onCreateAccount = (e: any) => {

    e.preventDefault();

    let email = this.refs.email.value.trim();

    let password = this.refs.password.value.trim();

    Accounts.createUser({email, password}, (err) => {

      if (err) {

        this.setState({ error: err.reason });

      } else {

        this.setState({ error: '' });

      }

    });

  }


  public render() {

    return (

      <div>

        <h1>Signup to short Link</h1>

        { this.state.error ? <p>{this.state.error} </p> : undefined}

        <form onSubmit={this.onCreateAccount}>

          <input type="email" ref="email" name="email" placeholder="Email"/>

          <input type="password" ref="password" name="password" placeholder="Password"/>

          <button>Create Acount</button>

        </form>

        <Link to="/login">Already have a account?</Link>

      </div>

    );

  }

}


Login.tsx

  - refs 정의

  - Meteor.loginWithPassword를 통해 로그인한다.

import * as React from 'react';

import { Link } from 'react-router-dom';

import { Meteor } from 'meteor/meteor';


export interface LoginProps {

  history: any;

}

export default class Login extends React.Component<LoginProps, any> {

  public refs: {

    email: HTMLInputElement,

    password: HTMLInputElement

  }


  constructor(props) {

    super(props);

    this.state = {

      error: ''

    };

  }


  onLogin = (e: any) => {

    e.preventDefault();

    let email = this.refs.email.value.trim();

    let password = this.refs.password.value.trim();

    Meteor.loginWithPassword({ email }, password, (err) => {

      if (err) {

        this.setState({ error: err.reason });

      } else {

        this.setState({ error: '' });

      }

    });

  }


  public render() {

    return (

      <div>

        <h1>Login to short Link</h1>

        {this.state.error ? <p>{this.state.error} </p> : undefined}

        <form onSubmit={this.onLogin}>

          <input type="email" ref="email" name="email" placeholder="Email" />

          <input type="password" ref="password" name="password" placeholder="Password" />

          <button>Login</button>

        </form>

        <Link to="/signup">Have a account?</Link>

      </div>

    );

  }

}


NotFound.tsx 파일도 생성한다.

import * as React from 'react';

export default () => <div>Not Found Page</div>




React Router 설정


라우팅 설정을 통해 가입, 로그인후 Link화면으로 이동하는 설정한다.


history 모듈을 설치한다.

$ meteor npm install --save history


client/main.tsx에 Route설정을 한다.

import * as React from 'react';

import { Meteor } from 'meteor/meteor';

import { render } from 'react-dom';

import { Provider } from 'react-redux';

import { Route, Router, Switch } from 'react-router-dom';

import { createBrowserHistory } from 'history';



import App from '../imports/ui/App'

import Login from '../imports/ui/pages/Login';

import Signup from '../imports/ui/pages/Signup';

import InfoContainer from '../imports/ui/Info';

import NotFound from '../imports/ui/pages/NotFound';

import store from '../imports/ui/store';


const browserHistory = createBrowserHistory();

const Root = (

  <Provider store={store}>

    <Router history={browserHistory}>

      <Switch>

        <Route exact path="/" component={Login} />

        <Route path="/main" component={App} />

        <Route path="/signup" component={Signup} />

        <Route path="/links" component={InfoContainer} />

        <Route path="*" component={NotFound} />

      </Switch>

    </Router>

  </Provider>

);


Meteor.startup(() => {

  render(Root, document.getElementById('react-target'));

});


links는 인증된 사용자만 볼 수 있으므로 Tracker.autorun이라는 Reactivity Computation 영역에서 Meteor.user()라는 Reactivity Source가 로그인 상태인지 검사한다.

  - 로그인 상태가 아니면 무조건 login화면으로 이동

  - 로그인 상태이면서 인증이 필요없는 화면인 경우 link화면으로 이동

// client/main.tsx

import { Tracker } from 'meteor/tracker';


Tracker.autorun(() => {

  const isAuthenticated = !!Meteor.user();

  if (isAuthenticated) {

    const pathname = browserHistory.location.pathname;

    const unauthenticatedPages: any = ['/', '/signup'];

    const isUnauthenticatedPage = unauthenticatedPages.includes(pathname);

    if (isUnauthenticatedPage) {

      browserHistory.push('/links'); // main

    } else {

      browserHistory.push(pathname);

    }

  } else {

    browserHistory.push('/'); // login

  }

});


Meteor.startup(() => {

  render(Root, document.getElementById('react-target'));

});


imports/ui/Info.tsx 에 logout 기능 추가

...

import { Accounts } from 'meteor/accounts-base';


interface InfoProps {

  links: any;

  loading: boolean

}


class Info extends React.Component<InfoProps, any> {


  linkList() {

    const { links, loading } = this.props;

    if (loading) {

      return <div>loading...</div>

    } else {

      return <LinkList links={links} />

    }

  }


  onLogout = () => {

    Accounts.logout();

  }


  render() {

    return (

      <div>

        <button onClick={this.onLogout}>Log out</button>

        <AddLink />

        {this.linkList()}

      </div>

    );

  }

}




가입 및 로그인 테스트 확인하기


가입을 하고, 로그인을 한다.

Chrome Extension 으로 MiniMongoExplorer를 설치하고 user Collection의 내용을 확인한다.


또는 Chrome DevTool의 Application에서 로그인 사용자의 userId와 console에서 확인해 볼 수 있다. 또한 Link페이지에서 로그아웃을 해보고 콘솔을 확인해 본다.




<참조>

- 크롬 확장툴 MiniMongoExplorer

- 세번째 글 소스

posted by 윤영식
2018. 11. 16. 16:07 Meteor/React + Meteor

Meteor에서 Redux 환경을 설정하고, 애플리케이션에 적용해 본다.


  - Meteor Collection의 Pub/Sub 설정

  - Collection의 CRUD 서비스 클래스 개발

  - Redux 환경 설정

  - Redux의 action, reducer 개발 및 store 설정

  - 애플리케이션에 Redux action 호출하기

  - 소스코드




MongoDB Collection Pub/Sub 설정


기본설치를 하게 되면 autopublish 미티어 패키지가 설치되어 있다. 삭제한다.

$ meteor remove autopublish


삭제를 하면 links 컬렉션으로 부터 데이터를 받지 못한다. 이제 필요한 것을 받기 위해 publish, subscribe를 설정한다.

  - server/main.tsx에서 insertLink 코드를 제거한다.

  - server/main.tsx에서 links 코드 import 문을 수정한다.

// main.tsx 전체코드

import { Meteor } from 'meteor/meteor';

import '../imports/api/links';  // 서버에서 사용하기 위해 반드시 import해야 한다. 하지 않으면 collection 생성, 제어를 못 한다.


Meteor.startup(() => { }); // 텅빈 코드 블록


  - imports/api/links.ts 에 publish 한다.

if (Meteor.isServer) {

  Meteor.publish('links', () => Links.find());

}


  - subscribe를 사용할 때 미티어의 Tracker.autorun을 사용하지 않고, React의 props에 subscribe정보를 바로 맵핑해 주는 withTracker를 사용하기 위해 react-meteor-data 패키지를 사용한다.

$ meteor npm install --save react-meteor-data


  - imports/api/ui/Info.tsx에 withTracker를 설정한다.

import { Meteor } from 'meteor/meteor';

import Links from '../api/links';


interface InfoProps {

links: any;

loading: boolean;

}


// 맨 하단

export default withTracker(() => {

       const handle = Meteor.subscribe('links');

return {

links: Links.find().fetch(),

loading: !handle.ready()

}

})(Info);




MongoDB Collection CRUD


간단한 Link CRUD 애플리케이션을 만든다.


  - Collection의 CRUD 로직을 담은 service를 생성한다. imports/ui밑에 link폴더를 생성한다.

// imports/ui/link/link.service.ts

import Links from '../api/links';


class LinkService {

  addLink({title, url}) {

    Links.insert({title, url, createAt: new Date()});

  }


  removeLink(_id: string) {

    Links.remove(_id);

  }


  updateLink(_id: string, {title, url}) {

    Links.update(_id, {title, url, updateAt: new Date()});

  }

}


export const linkService = new LinkService();


  - imports/ui/link/AddLink.tsx 파일 추가

import * as React from 'react';

import { linkService } from './links.service';

export interface AddLinkProps {

}

export default class AddLink extends React.Component<AddLinkProps, any> {

  handleSubmit = (e: any) => {

    //ignore validation

    e.preventDefault();

    const param = {

      title: e.target.title.value,

      url: e.target.url.value

    }

    linkService.addLink(param);

  };


  public render() {

    return (

      <form onSubmit={this.handleSubmit} >

        <input type="text" name="title" placeholder="title" />

        <input type="text" name="url" placeholder="url" />

        <button>Add Link</button>

      </form>

    )

  }

}


  - imports/ui/App.tsx에서 <Info/> 만 남기고 삭제하고, Info.tsx에 AddLink를 추가한다.

// App.tsx

class App ... {

  render() {

    return (

      <div></InfoContainer/></div>

    )

  }

}


// Info.tsx
class Info ... {
  render() {
    return(
      <div>
          <AddLink />
          ....
       </div>
    )
  }
}


  - link폴더 밑에 LinkList.tsx와 Link.tsx를 추가한다.

// Link.tsx

import * as React from 'react';

export interface LinkProps {

  link: any

}


export default class Link extends React.Component<LinkProps, any> {

  public render() {

    const { link } = this.props;

    return (

      <li key={link._id}>

        <a href={link.url} target="_blank">{link.title}</a>

      </li>

    );

  }

}


// LinkList.tsx

import * as React from 'react';

import Link from './Link';

export interface LinkListProps {

  links: any[]

}


export default class LinkList extends React.Component<LinkListProps, any> {

  public render() {

    const links = this.props.links.map(

      link => <Link link={link}/>

    );

    return (

      <div>

        <h2>Links</h2>

        <ul>{links}</ul>

      </div>

    );

  }

}



  - Info.tsx에서 LinkList를 사용토록 변경한다.

class Info extends React.Component<InfoProps, any> {

  linkList() {

    const { links, loading } = this.props;

    if (loading) {

      return <div>loading...</div>

    } else {

      return <LinkList links={links} />

    }

  }


  render() {

    const { links } = this.props;

    return (

      <div>

        <AddLink />

        {this.linkList()}

      </div>

    );

  }

}


  - 마지막으로 link 삭제를 한다.

// imports/ui/link.Link.tsx

import * as React from 'react';

import { linkService } from './links.service';


export interface LinkProps {

  link: any

}


export default class Link extends React.Component<LinkProps, any> {

  removeLink = () => {

    const { link } = this.props;

    linkService.removeLink(link._id);

  }


  public render() {

    const { link } = this.props;

    return (

      <li key={link._id}>

        <a href={link.url} target="_blank">{link.title}</a>

        <button onClick={this.removeLink}> x </button>

      </li>

    );

  }

}





Redux 관련 패키지 설치


redux 기본 패키지를 설치한다.

$ meteor npm install --save redux react-redux react-router-redux

$ meteor npm install --save-dev @types/react-redux  @types/react-router-redux


redux action, reducer을 보다 편하게 사용할 수 있는 typesafe-actions 모듈을 설치한다.

$ meteor npm install --save typesafe-actions


redux에서 비동기를 처리할 수 있는 redux-observable 과 rxjs 모듈을 설치한다.

$ meteor npm install --save redux-observable rxjs


state 갱신으로 인한 반복 rendering을 제거해 성능향상을 위한 reselect 모듈도 설치한다.

$ meteor npm install --save reselect




Redux 코드 개발


link action 개발

  - action type constants 정의

  - action Model 정의

  - action  에 대한 정의

// imports/ui/pages/link/link.action.ts

import { action } from 'typesafe-actions';


/**************************

 * constants, model

 **************************/

// constants

export const ADD_REQUEST = '[link] ADD_REQUEST';

export const ADD_SUCCESS = '[link] ADD_SUCCESS';

export const ADD_FAILED = '[link] ADD_FAILED';

export const DELETE_REQUEST = '[link] DELETE_REQUEST';

export const DELETE_SUCCESS = '[link] DELETE_SUCCESS';

export const DELETE_FAILED = '[link] DELETE_FAILED';

export const CHANGE = '[link] CHANGE';


// model

export type LinkModel = {

  _id?: string;

  title?: string;

  url?: string;

  visited?: boolean;

  error?: boolean;

  errorMsg?: any;

  success?: boolean;

  createdAt?: any;

  updatedAt?: any;

};


/**************************

 * actions, action-type

 **************************/

export const addLink = (params: LinkModel) => action(ADD_REQUEST, params);

export const addLinkSuccess = (params: LinkModel) => action(ADD_SUCCESS, params);

export const addLinkFailed = (params: LinkModel) => action(ADD_FAILED, params);

export const removeLink = (id: string) => action(DELETE_REQUEST, id);

export const removeLinkSuccess = (id: string) => action(DELETE_SUCCESS, id);

export const removeLinkFailed = (id: string) => action(DELETE_FAILED, id);

export const changeLink = (id: string) => action(CHANGE, id);


link reducer 개발

  - Link State 정의

  - LinkAction 타입

  - Link reducer 분기

  - reselect를 이용한 selector는 별도로 만들지 않고, link.reduer.ts 파일이 함께 둔다. (파일이 너무 많아져서...)

// imports/ui/pages/link/link.reducer.ts

import { ActionType } from 'typesafe-actions';

import { combineReducers } from 'redux';

import { createSelector } from 'reselect';

import * as actions from './link.action';


/**************************

 * state

 **************************/

// state

export type LinkState = {

  list: actions.LinkModel[],

  linkFilter: string

};


/**************************

 * reducers

 **************************/

export type LinkAction = ActionType<typeof actions>;

export const linkReducer = combineReducers<LinkState, LinkAction>({

  list: (state = [], action) => {

    switch (action.type) {

      case actions.ADD_FAILED:

        return state;

      case actions.ADD_SUCCESS:

        return [...state, action.payload];

      case actions.DELETE_FAILED:

        return state;

      case actions.DELETE_SUCCESS:

        return state.filter(item => item._id === action.payload);

      case actions.CHANGE:

        return state.map(

          item =>

            item._id === action.payload

              ? { ...item, visited: !item.visited }

              : item

        );

      default:

        return state;

    }

  },

  linkFilter: (state = '', action) => {

    switch (action.type) {

      case actions.CHANGE:

        if (action.payload === 'visited'){

          return '';

        } else {

          return 'visited';

        }

      default:

        return state;

    }

  }

})


/**************************

 * selectors

 **************************/

export const getLinks = (state: LinkState) => state.list;

export const getLinkFilter = (state: LinkState) => state.linkFilter;

export const getFilteredLinks = createSelector(getLinks, getLinkFilter, (links, linkFilter) => {

  switch (linkFilter) {

    case 'visited':

      return links.filter(t => t.visited);

    default:

      return links;

  }

});


redux-observable을 이용한 epic을 만든다.

  - async 처리

  - rxjs 이용

  - takeUntil은 cancel을 위한 장치이다.

// imports/ui/pages/link/link.epic.ts

import { Epic, combineEpics } from 'redux-observable';

import { filter, map, switchMap, takeUntil } from 'rxjs/operators';

import { isOfType } from 'typesafe-actions';


import Links from '../../../api/links';

import { insertCollection, removeCollection, RequestModel } from '../../sdk';

import * as actions from './link.action';


const addLink: Epic = (

  action$,

  store

) =>

  action$.pipe(

    filter(isOfType(actions.ADD_REQUEST)),

    switchMap(action => {

      const { title, url } = action.payload;

      return insertCollection(Links, { title, url, createdAt: new Date() })

    }),

    map((response: RequestModel) => {

      if (response.error) {

        return actions.addLinkFailed({ ...response.result })

      }

      return actions.addLinkSuccess(response.result)

    }),

    // takeUntil(action$.pipe(

    //   filter(isOfType(actions.ADD_REQUEST))

    // ))

  );


const removeLink: Epic = (

  action$,

  store

) =>

  action$.pipe(

    filter(isOfType(actions.DELETE_REQUEST)),

    switchMap(action => {

      return removeCollection(Links, action.payload);

    }),

    map((response: RequestModel) => {

      if (response.error) {

        return actions.removeLinkFailed({ ...response.result, ...response.params })

      }

      return actions.removeLinkSuccess(response.params._id);

    }),

    // takeUntil(action$.pipe(

    //   filter(isOfType(actions.ADD_REQUEST))

    // ))

  );


export const linkEpic = combineEpics(addLink, removeLink);


Meteor Client Collection 을 Observable로 전환

  - meteor client collection의 insert, remove시에 call 결과를 Observable로 변환하여 반환하는 유틸을 만든다.

  - 이는 redux-observable의 epic에서 async 데이터를 switchMap 오퍼레이터로 다루기 위함이다.

// imports/sdk/util/ddp.util.ts

import { from, Observable } from 'rxjs';


export type RequestModel = {

  error?: boolean;

  success?: boolean;

  result: any;

  params?: any;

}


export function insertCollection(collection: any, params: any): Observable<RequestModel> {

  return from(new Promise((resolve, reject) => {

    collection.insert(params, (error, result) => {

      if (error) {

        reject({ error: true, result: { ...error }, params: { ...params } });

      }

      if (typeof result === 'string' || typeof result === 'number') {

        resolve({ success: true, result, params: {...params} });

      } else {

        resolve({ success: true, result: { ...result }, params: { ...params } });

      }

    });

  }));

}


export function removeCollection(collection: any, _id: string): Observable<RequestModel> {

  return from(new Promise((resolve, reject) => {

    collection.remove(_id, (error, result) => {

      if (error) {

        reject({ error: true, result: { ...error }, params: { _id } });

      }

      if (typeof result === 'string' || typeof result === 'number') {

        resolve({ success: true, result, params: { _id } });

      } else {

        resolve({ success: true, result: { ...result }, params: { _id } });

      }

    });

  }));

}




RootReducer와 Store 설정


link관련 action, reducer, epic 개발이 끝나면 이를 등록하는 설정을 한다.

  - root Reducer 정의

  - root State  타입 정의

  - root Action 타입 정의

  - root Epic 정의

  - root Store 설정

// imports/ui/store.ts

import { combineEpics, createEpicMiddleware } from 'redux-observable';

import { createStore, applyMiddleware, combineReducers, compose } from 'redux';

import { RouterAction, LocationChangeAction } from 'react-router-redux';

import { routerReducer } from 'react-router-redux';

import { StateType } from 'typesafe-actions';


import { linkEpic } from './pages/link/link.epic';

import { linkReducer, LinkAction } from './pages/link/link.reducer';


/***********************

 * root reducer

 ***********************/

const rootReducer = combineReducers({

  router: routerReducer,

  links: linkReducer

});


/***********************

 * root state

 ***********************/

export type RootState = StateType<typeof rootReducer>;


type ReactRouterAction = RouterAction | LocationChangeAction;

export type RootAction = ReactRouterAction | LinkAction;


/***********************

 * root epic

 ***********************/

const composeEnhancers =

  (process.env.NODE_ENV === 'development' &&

    (window as any) &&

    (window as any).__REDUX_DEVTOOLS_EXTENSION_COMPOSE__) ||

  compose;


const rootEpic = combineEpics(linkEpic);

const epicMiddleware = createEpicMiddleware();


/***********************

 * root store

 ***********************/

function configureStore(initialState?: object) {

  // configure middlewares

  const middlewares = [epicMiddleware];

  // compose enhancers

  const enhancer = composeEnhancers(applyMiddleware(...middlewares));

  // create store

  const store = createStore(rootReducer, enhancer);

  // run epic: https://redux-observable.js.org/docs/basics/SettingUpTheMiddleware.html

  epicMiddleware.run(rootEpic);

  return store;

}


const store = configureStore();

export default store;


애플리케이션에 store를 최종 설정한다.

// client/main.tsx

import * as React from 'react';

import { Meteor } from 'meteor/meteor';

import { render } from 'react-dom';

import { Provider } from 'react-redux';


import App from '../imports/ui/App'

import store from '../imports/ui/store';


const Root = (

  <Provider store={store}>

    <App />

  </Provider>

);


Meteor.startup(() => {

  render(Root, document.getElementById('react-target'));

});


window 객체 인식을 위해 type definition을 정의한다.

  - 루트에 typings 폴더 생성

  - typings/index.d.ts 파일 생성

declare var window: any;




Application에서 Redux Action 호출하기


add/remove link 리덕스 액션을 애플리케이션에 적용한다. link.service.ts 는 사용하지 않는다.

  - AddLink.tsx에 addLink 액션 적용

// imports/ui/link/AddLink.tsx

import * as React from 'react';

import { connect } from 'react-redux';

import { addLink } from './link.action';


export interface AddLinkProps {

  addLink: Function;

}


class AddLink extends React.Component<AddLinkProps, any> {

  handleSubmit = (e: any) => {

    //ignore validation

    e.preventDefault();

    const param = {

      title: e.target.title.value,

      url: e.target.url.value

    }

    const { addLink } = this.props;

    addLink(param);

  };


  public render() {

    return (

      <form onSubmit={this.handleSubmit} >

        <input type="text" name="title" placeholder="title" />

        <input type="text" name="url" placeholder="url" />

        <button>Add Link</button>

      </form>

    )

  }

}


export default connect(undefined, { addLink })(AddLink);


  - Link.tsx에 removeLink 액션 적용

// imports/ui/pages/link/Link.tsx

import * as React from 'react';

import { removeLink } from './link.action';

import { connect } from 'react-redux';


export interface LinkProps {

  link: any,

  removeLink: Function

}

class Link extends React.Component<LinkProps, any> {

  removeLink = () => {

    const { link, removeLink } = this.props;

    removeLink(link._id);

  }


  public render() {

    const { link } = this.props;

    return (

      <li key={link._id}>

        <a href={link.url} target="_blank">{link.title}</a>

        <button onClick={this.removeLink}> x </button>

      </li>

    );

  }

}


export default connect(undefined, { removeLink })(Link);





<참조>

- 블로그 소스 코드

react-redux-typescript-guide 소스

- redux-actions 사용하기

- redux-observable 사용하기

- typesafe-actions 사용하기

- reselect 사용하여 성능 최적화 하기

posted by 윤영식
2018. 11. 13. 16:42 Meteor/React + Meteor

Meteor v1.8이 되면서 CLI에 react기반 애플리케이션 자동 생성 기능이 추가되었다. 여기에 Typescript와 Redux을 접목해서 개발환경을 꾸며 본다.


  - React기반 Meteor 애플리케이션 생성

  - SCSS 환경설정

  - Typescript 환경설정

  - 미티어의 Reactivity Computation인 withTracker 확인

  - AntDesign CSS Framework 설정

  - 소스코드




React 기반환경 만들기


meteor를 설치한다.

// Node Version Manager를 통해 Node LTS 버전을 설치한다. 최신 Meteor 1.8 은 Node v8.*을 사용한다.

$ nvm install 8.12.0


// meteor를 설치한다.

$ curl https://install.meteor.com | sh


// 향후 meteor v1.8.1 버전이 릴리즈 되면 성능향상을 위해 업그레이드를 반드시 수행한다.

$ meteor update --release 1.8.1


애플리케이션 생성

// 명령어: meteor create --react <AppName>

$ meteor create --react react-first

$ cd react-first

$ meteor run




SCSS 환경 전환


.css파일을 .scss파일로 전환한다. 이를 지원하기 위해 scss 패키지를 설치한다.

$ meteor add fourseven:scss




Typescript 관련 모듈 설치


meteor의 typescript 지원 패키지를 설치한다.

$ meteor add barbatus:typescript


@types와 필요 모듈을 설치한다.

$ meteor npm install --save-dev @types/meteor

$ meteor npm install --save-dev @types/node

$ meteor npm install --save-dev @types/react

$ meteor npm install --save-dev @types/react-dom


$ meteor npm install --save-dev typescript

$ meteor npm install --save-dev tslint

$ meteor npm install --save-dev tslint-react




Typescript 환경 전환


root에 tsconfig.json 파일 추가

{

    "compilerOptions": {

        "target": "es6",

        "allowJs": true,

        "jsx": "preserve",

        "moduleResolution": "node",

        "types": [

            "node"

        ]

    }

}


root에 tslint.json 파일 추가

// 과도한 lint가 귀찮아 extends는 주석처리함

{

    // "extends": [

    //     "tslint:latest",

    //     "tslint-react"

    // ],

    "rules": {

        "quotemark": [

            true,

            "single",

            "jsx-double"

        ],

        "ordered-imports": false,

        "no-var-requires": false

    }

}


root의 client와 imports, server 폴더안의 파일 명칭 .jsx / .js 를 .tsx / .ts 로 변경한다. tests 폴더는 .js 그대로 둔다.



마직막으로 package.json에서 mainModule의 client를 main.tsx로 수정한다.





.tsx 파일 내용을 typescript에 맞게 수정하기


1) import 문 수정

// client, imports 폴더안의 모든 .tsx 파일


// react import

import React from 'react'; ==> import * as React from 'react';


// 절대경로를 상대경로로 수정

import App from '/imports/ui/App'; ==> import App from '../imports/ui/App';


// .jsx 파일을 확장자 제거 App.tsx

import Hello from './Hello.jsx' ==> import Hello from './Hello';

import Info from './Info.jsx' ==> import Info from './Info';


2) class 문 수정

class Hello extends Components {  ==> class Hello extends React.Component {


3) class에 Props 타입 설정

// info.tsx


interface InfoProps {

  links: any;

}


class Info extends React.Component<InfoProps, any> {

  ...

}


4) export default 문 수정

    withTracker는 Meteor의 Reactivity Computation 공간이다. Computation에는 Meteor의 Reactivity Resource가 위치한다. 즉, source가 변경되면 Computation영역이 재실행된다.

// imports/ui/info.tsx

export default InfoContainer = withTracker(...)

   ==>

export default withTracker(...);


// imports/api/links.ts

export default Links = new Mongo.Collection('links');

   ==>

const Links = new Mongo.Collection('links');

export default Links;


이제 다시 meteor run 을 실행한다.



Ant Design 설치하기


CSS Component를 제공하는 antd를 설치한다.

$ meteor npm install --save antd

$ meteor npm install --save-dev @types/antd


client/main.tsx 안에 antd css 를 import 한다.

import '../node_modules/antd/dist/antd.css';


또는, antd.less 파일을 직접 import할 수 있다.

$ meteor add less

$ meteor npm install --save indexof


// client/theme.less 파일 생성하고 antd.less 파일 import하기

@import '{}/node_modules/antd/dist/antd.less';


antd의 Menu를 App.tsx에 적용해 본다.

import * as React from 'react';

import Hello from './Hello';

import Info from './Info';

import { Menu, Icon } from 'antd';


const SubMenu = Menu.SubMenu;

const MenuItemGroup = Menu.ItemGroup;


class App extends React.Component {

  state = {

    current: 'mail',

  };


  handleClick = (e) => {

    console.log('click ', e);

    this.setState({

      current: e.key,

    });

  }


  render() {

    return (

      <div>

        <Menu

          onClick={this.handleClick}

          selectedKeys={[this.state.current]}

          mode="horizontal"

        >

          <Menu.Item key="mail">

            <Icon type="mail" />Navigation One

            </Menu.Item>

          <Menu.Item key="app" disabled>

            <Icon type="appstore" />Navigation Two

            </Menu.Item>

          <SubMenu title={<span className="submenu-title-wrapper"><Icon type="setting" />Navigation Three - Submenu</span>}>

            <MenuItemGroup title="Item 1">

              <Menu.Item key="setting:1">Option 1</Menu.Item>

              <Menu.Item key="setting:2">Option 2</Menu.Item>

            </MenuItemGroup>

            <MenuItemGroup title="Item 2">

              <Menu.Item key="setting:3">Option 3</Menu.Item>

              <Menu.Item key="setting:4">Option 4</Menu.Item>

            </MenuItemGroup>

          </SubMenu>

          <Menu.Item key="alipay">

            <a href="https://ant.design" target="_blank" rel="noopener noreferrer">Navigation Four - Link</a>

          </Menu.Item>

        </Menu>

        <Hello />

        <Info />

      </div>

    );

  }

}


export default App;




지금까지의 적용 소스코드, Redux 환경 설정하기는 다음 글에서..




<참조>


- meteor-react-typescript 코드 샘플

- meteor changelog

- meteor에 antd .less 파일 import하기 (데모소스)

- meteor-react-typescript-boilerplate 소스

posted by 윤영식
2018. 9. 14. 17:31 React

실제 프로젝트에서 사용을 안하다보니 자꾸 처음 내용이 익숙해 지지 않은 상태에서 잊어버리고 만다. React + Typescript기반을 다시 시작해 본다.



Install React with Typescript

React와 Typescript 환경을 만든다

// 2018.9 현재 LTS NodeJS 버전

$ nvm use 8.12.0

// typescript v3.0.3 으로 업데이트

$ npm i -g typescript

$ npm i -g create-react-app (or yarn global add create-react-app)


// TYPESCRIPT-CSS

$ create-react-app my-app --scrips-version=react-scripts-ts


package.json에 eject기능이 있어서 webpack config를 밖으로 추출하여 직접 핸들링할 수 있게 한다.

$ cd my-app

$ npm run eject



SCSS 환경구축

css 환경을 scss 환경으로 바꿔준다.

// scss loader 설치

$ yarn add node-sass sass-loader --dev


App.css와 index.css의 확장자를 .scss로 바꾸고, App.tsx, index.tsx의 import 문 확장자를 .scss로 바꾼다.

import './App.scss';


config/webpack.config.dev.js 와 webpack.config.prod.js 파일안에 scss설정을 추가한다. 빨간 부분을

      {

            test: /\.(css|scss)$/,

            use: [

              require.resolve('style-loader'),

              {

                loader: require.resolve('css-loader'),

                options: {

                  importLoaders: 1,

                },

              },

              {

                loader: require.resolve('postcss-loader'),

                options: {

                  // Necessary for external CSS imports to work

                  // https://github.com/facebookincubator/create-react-app/issues/2677

                  ident: 'postcss',

                  plugins: () => [

                    require('postcss-flexbugs-fixes'),

                    autoprefixer({

                      browsers: [

                        '>1%',

                        'last 4 versions',

                        'Firefox ESR',

                        'not ie < 9', // React doesn't support IE8 anyway

                      ],

                      flexbox: 'no-2009',

                    }),

                  ],

                },

              },

              {

                loader: require.resolve("sass-loader"),

                options: { }

              }

            ],

      },


기존 App.scss내용을 다음과 같이 바꾸어 확인해 본다.

.App {

  text-align: center;

  &-logo {

    animation: App-logo-spin infinite 20s linear;

    height: 80px;

  }


  &-header {

    background-color: rgb(197, 40, 40);

    height: 150px;

    padding: 20px;

    color: white;

  }


  &-title {

    font-size: 1.5em;

  }


  &-intro {

    font-size: large;

  }

}

yarn start하여 점검!



Component LifeCycle


일반 컴포넌트

  constructor -> componentWillMount -> render -> componentDidMount -> componentWillUnmount


props, state 사용 컴포넌트

  componentWillReceiveProps -> shouldComponentUpdate -> componentWillUpdate -> render -> componentDidUpdate

  - shouldComponentUpdate: true, false로 다음으로 이벤트를 넘길수도 안할수도 있음




Component Type

PureComponent

  shouldComponentUpdate에서 Shallow compare하므로 reference를 바꾸어 주어야 render가 호출됨.


Functional Component (Stateless Function Component)

  const myComp: Reat.SFC<Props> = (props) => {...}

import * as React from“ react”

interface WelcomeProps {

  name: string,

}


const Welcome: React.SFC < WelcomeProps > = (props) => {

  return <h1 > Hello, {

    props.name

  } < /h1>;

}



Router for SPA

react-router v4

   BrowserRouter, Route, Link, NavLink, Redirect 사용

   BrowserRouter는 window.history.pushState() 로 동자하는 라우터

   RouteComponentProps: route되면서 url의 파라미터를 props로 받음. history, match 속성을 가짐.

<BrowserRouter>

   <Route exact={true} path="/" component={} or render={} or children={} >

      <Link to="/a" />

      <NavLink activeStyle={{ color: red }} to="/b" />

   </Route>

   <Redirect from="/a" to="/b" />

</BrowserRouter>


Switch로 감쌈

  <Switch>

    <Route ... />

    <Route ... />

    <Route ... />

 </Switch>



Redux

react-redux

  여러  action을 reducer를 통해 하나의 store를 만든다.

     - action 타입을 만들고 action 객체를 만드는 펑션을 (action creator) 정의한다.

     - action을 처리하는 reducer 펑션을 정의한다. (Pure function, immutable)

        reducer 펑션을 action별로 나눈 다음 사용시에는 combineReducers 로 합쳐서 사용한다.

     - reducer를 createStore에 넣어주면 single Store가 만들어진다.

        store에는 getState(), dispatch(액션), subscribe(리스너),  replaceReducer(다른리듀서) 4개 메소드가 있음

   redux를 react에 연결하기

      - componentDidMount: subscribe

      - componentWillUnMount: unsubscribe

      - Provider는 context에 store를 담아 모든 component에서 store를 사용할 수 있도록 한다.

         Provider를 제공하는 react-redux를 사용한다.

   connect를 통해 컴포넌트에 연결한다.

      - App에 대한 High order component이다.

      - 전체 state의 모양과 action creator를 파라미터로 넣어준다.

$ yarn add redux react-redux @types/redux @types/react-redux


const mapStateToProps = (state: { age: number}) => {

  return {

     age: state.age

  }

}


const mapDispatchToProps = (dispatch: Function) => {

  return {

      onAddAge: () => { dispatch(addAge()); }

  };

}


interface AppProps {

  age: number;

  onAddAge: void;

}


connect(mapStateToProps, mapDispatchToProps)(App);


class App<{props: AppProps}> extends Component {

    return <div>{this.props.age}</div>

}


  dispatch안에서 async처리를 할 수 있다.

  applyMiddleware는 dispatch 전후에 처리할 수 있다.

  action이 async일 때 미들웨어인 redux-thunk를 이용한다.



<참조>

- 2017 Typescript Korea 강의 (유튜브)

- scss 적용하기

- scss loader 설정하기, Class 사용 in Velopert

- Typescript + React 환경 만들기 in Velopert

- React LifeCycle 설명

- Component Type - SFC 설명

- React Router in Velopert 소개





'React' 카테고리의 다른 글

[React] Semantic-UI를 React 컴포넌트로 만들기 - 1  (0) 2015.08.23
[React] CSS Framework 선정하기  (0) 2015.08.15
[Flux] Flux 배우는 방법  (0) 2015.07.04
[React] AngularJS와 ReactJS 비교  (0) 2015.07.01
[React] 배우는 방법  (0) 2015.05.15
posted by 윤영식
2016. 10. 23. 22:59 Angular/Concept

Angular v2가 정식 릴리즈되었다. Angular v1 은 Two-way data-binding 이라는 독특한 특징으로 인해 많은 사용자 층을 확보했지만 장점 만큼이나 성능상의 단점도 존재했었다. 또한 처음엔 쉬운듯 하면서 좀 더 깊게 들어가볼려고 하면 학습곡선이 갑자기 껑충뛰기도 했다. 가장 많이 사용했던 Directive(지시자)가 대표적이다. 많은 개발자가 만들어 놓은 지시자를 쉽게 가져다 쓸 수는 있지만 직접 만들어 애플리케이션에 접목하려 할 때 첫 문턱을 만나게 된다. 그리고 jQuery사용에 익숙한 개발자에게 Angular v1 시점상의 차이로 Angular v1 방식의 개발패턴을 요구하기도 했다. 관성은 무섭다. 기존에 사용하던 방식을 버리고 Angular v1에 맞춰서 애플리케이션을 만들어 가기란 곤혹스럽다. Angular v2 또한 그런 인식의 전환을 요구할까? 그렇다 그리고 아니다.






웹 애플리케이션 흐름

웹 애플리케이션 개발을 위해 우리가 사용하는 jQuery같은 라이브러리나 Angular, Backbone같은 프레임워크의 가장 1차적인 목적은 무엇일까? 나는 Data Projection이라 생각한다. 데이터를 화면에 출력하기 위해 DOM을 얼마나 쉽게 조작하고 상호 작용할 수 있느냐가 선택의 기준이라 생각한다. Data Projection을 일관되고 확장가능하고 배포가능하게 하는 방식으로 기술은 발전해 왔고, 현재는 화면에 대한 제어방식이 컴포넌트 기반 방식으로 발전해 오고 있다.


Data Projection의 역사를 보면 초장기엔 Server Side Rendering 를 사용해 웹 애플리케이션을 개발했다. 예로 JSP, PHP, ASP 같이 서버 미들웨어서 데이터를 조회하고 HTML을 조작하여 결과 HTML을 브라우져에 전송하던 시대이다.




1세대에는 AJAX가 나오고 다양한 라이브러리나 프레임워크가 나왔다. 이때는 데이터변경에 대한 DOM반영이 서버에서 클라이언트 개발자의 몫으로 넘어오게 되었다. 즉, 직접 DOM 을 얻어와서 특정 위치에 넣어 주어야 했고, DOM에서 발생하는 이벤트를 Listening해서 처리하고 DOM에 반영하는 모든 작업이 웹 개발자가 직접 코딩하던 단계였다. Java의 프레임워크 역사로 보면 Struts 로 비유할 수 있지 않을까 싶다.




2세대로 넘어오게 되면 Model을 DOM 에 반영하는 방식은 자동화 된다. 여기에 대표적인 프레임워크가 Ember 와 Angular v1 이다. 이때 부터 Single Page Application (SPA) 개발이라는 용어가 나오게 된다. URI 변경에 대한 대응으로 Routing  개념이 나오고, Data Projection후 원하는 일부 DOM을 변경하는 역할이 프레임워크로 넘어갔고, 웹 개발자는 좀 더 애플리케이션 비즈니스 로직에 집중토록 만들었다. Java 프레임워크로 비유하자면 Struts와 Spring Framework 초기버전의 중간 지대 정도 쯤이라 생각한다.  이때부터 Frontend (프론트앤드)라는 직군이 웹 개발자와 분리되기 시작한 지점이라 생각한다. 이에 대한 자세한 설명은 태곤님이 작성한 "[번역] 프론트엔드 개발자는 왜 구하기 어렵나요?"를 참조하자. 2011년을 기점으로 2013년 웹 애플리케이션 프레임워크가 정착을 해가는 시기였고, 현재는 대부분의 스타트업이나 중견기업에서 2세대 웹 애플리케이션 프레임워크를 선택할 경우 프론트엔드 개발자와 백앤드 개발자를 구분하여 팀을 구성하고 있는 추세이다.





3세대는 2세대의 과도기를 거쳐 2세대의 장점을 흡수 하면서 성능상의 이슈를 해결하고, 점점 복잡해 지고있는 웹 애플리케이션을 보다 직관적이고 쉽게 개발할 수 있게 노력하고 있다. 대표적인 프레임워크로는 Facebook의 React와 Google의 Angular v2 (이하 Angular)이다. Angular는 Component기반 개발 방식으로 표준인 Web Components를 지원하며 Typescript를 기본 언어로 채택했다. Typescript는 Type 시스템을 제공하기 때문에 개발단계에서 버그의 가능성을 쉽게 찾을 수 있도록 도와준다. React와 Angular에 대한 장단점은 손창욱님의 "React보다 Angular v2에 더 주목해야 하는 이유"를 참조하자. Java의 Spring Framework이 성숙하면서 Annotation 같은 기능이 추가되듯, Angular v2 프레임워크는 Java의 Spring 프레임워크 최신버전과 비유할 수 있다.



Angular v1에 대한 개발 및 컨설팅을 3년 가까이 하면서 올해 초 Angular v2를 공부하고 기존 v1 코드를 v2 코드로 전환하면서 코드 베이스는 50%가량 줄었고, 반응속도는 30%가량 개선되었다. 8명 프론트앤드 개발자와 컨버전을 진행하면서 이구동성으로 말하는 것은 "코드가 직관적으로 변했다. 코드량이 현저히 줄었다. Typescript의 타입체킹으로 인해 실수를 최소화 할 수 있었다" 이다.



Angular v2 왜 배워야 하는가?

Angular를 왜 배워야 하는가? 답하자면 안배워도 된다. 단순 홈페이지나 업무 화면이라면 쉽고 더 빨리 만들 수 있는 워드프레스나 서비스를 이용하거나 DOM 핸들링 라이브러리나 플러그인을 사용해 개발하는 편이 낫다. 하지만 솔루션의 복잡한 요구사항을 지속적으로 반영해야 하고 DOM제어가 복잡해 질 가능성이 높다면 jQuery, React 같은 라이브러리 보다는 Angular 같은 프레임워크를 선택하는 것이 좋다. 그리고 최근에는 ES2015 표준이 확정되었고 최신 브라우져에 대부분 기능이 구현되고 있다. 2세대와 3세대 Data Projection의 가장 큰 개발 방식의 차이는 ES2015의 이해에서부터 시작한다.  즉, ES2015 문법을 잘 알고 사용하면 좀 더 쉽고 간단하게 코드 베이스를 유지하면서 오류를 최소화할 수 있다. 예로 -> 펑션은 this에 대한 오류를 방지하고, Set/Map등 Collection은 Java의 Collection과 유사한다.



Angular v2 시작하면 초기에 배워야 하는 것들이 갑자기 늘어난다. 이것은 2세대와 3세대의 개발 패턴이 바뀌었음을 시사한다. ES2015 문법은 그대로 TypeScript에 녹아 있고, Type System과 Annotation 기능이 녹아 들어 더욱 편리한 개발을 가능토록 한다. 따라서 ES2015의 Syntax와 개념을 이해해야 한다. 그리고 Typescript를 다시 공부해야 한다. 또한 요즘 인기를 누리고 있는 Reactive Programming을 표방한 대표적인 라이브러리인 RxJS를 Angular가 근간으로 사용하고 있다. 따라서 RxJS 에 대한 개념과 사용법을 익혀야 한다. 그런후 Web Components 란 무엇인지 알아야 하고, Angular 프레임워크의 아키텍쳐를 구성하는 개념인 Change Detection 동작원리, Dependency Management, Modulization 을 알아야 하고, 다음으로 주변의 Tooling System으로 SystemJS (Webpack), Gulp 등을 알아야 한다.


이렇게 열거해 보니 참으로 배울 것이 많다. 다시 말하지만 안 배워도 된다. 하지만 자신의 근육을 한단계 업그레이드 시키기 위해 고통스러운 인내의 시간은 필요하다. 배워야 하는 기준은 두가지 정도로 이야기 해본다.


첫째, 서비스 버전업을 위해 요구사항이 계속 증가하고 있는가?

둘째, 더 적고 직관적인 코드 베이스를 유지하면서 성능을 높이고 싶은가?




프론트엔드 개발자 직군이 새롭게 자리잡게된  5년기간 동안 많은 부분이 기존의 백앤드 개발 패턴과 유사해 지고 있다. 모듈 의존성 관리, 빌드 시스템, 프레임워크의 발전은 Java개발자들이 초장기 프레임워크 없이 개발하다 Struts를 만났을 때 기쁨에서 Spring을 만나 자유를 얻었지만 여전히 배워야 할 것들은 더욱 증가했음을 알것이다. 그러나 어쩌겠는가 우리는 더 게을러 지고싶다는 욕구가 있고 프레임워크가 그것을 만족시켜줄것이라는 희망을 품고 있는 한 배움과 진보는 계속될 뿐이다.



참조


posted by 윤영식
2016. 5. 1. 15:34 Angular/Concept

컴포넌트 기반 개발시에 어떤 설계방식으로 해야하는지 알아본다. 새롭게 알게된 GistRun 서비스를 사용해서 테스트해 볼 것이다. 예제의 내용은 최근 Rangle.io의 Angular2 Component 온라인 강좌를 참조한다.





GistRun 사용하기


github기능중 코드 조각을 관리할 수 있는 서비스가 있다. 한번에 최대 10개까지 파일을 만들 수 있다.  여기를 클릭해 보면 Gist에 입력한 한 주제에 대한 파일을 보여주고 Gist의 내역을 테스트 해 볼 수 있다.



plunker 또는 jsfiddle의 내용도 불러와서 나의 Gist에 저장을 할 수 있다. 각 서비스의 장점이 있지만 일단 GistRun은 UI가 깔끔하고 속도가 빠르다. 그리고 수정사항에 대한 버전을 관리할 수 있고, Github의 종속된 서비스이므로 소스를 관리한다는 입장에 일관성을 가질 수 있을 것으로 보인다. Gist만으로 모자랐던 것을 GistRun이 생명력을 불어 넣은 격이다.





Angular2 Component 가이드


Angular2는 컴포넌트로 시작해서 컴포넌트로 끝난다. 컴포넌트기반으로 UI를 설계할 때 자주 나오는 방식이 프리젠테이션과 컨테이너의 분리이다.


  - Container 컴포넌트

    + 데이터와 비즈니스 로직을 다룬다

    + 컴포넌트 트리(Tree)를 렌더링 한다

    + 재사용하기 어렵다


  - Presentational 컴포넌트

    + 상태를 포함하지 않는다. 따라서 컴포넌트 속성에 대한 수순(pure) 펑션으로 구성한다

    + 표현만을 담당한다

    + 재사용이 가능하다


Thinking in React의 내용은 Angular2의 컴포넌트 개발 방식과 거의 일치한다. Container 컴포넌트는 하위 컴포넌트의 이벤트에 대해 XHR 요청을 수행하는 Angular2 Service를 Inject해서 서버로 부터 데이터를 요청하고, Component Tree를 통해 하위로 데이터를 내려 보낼 수 있다.



오렌지색 부분은 전체 애플리케이션을 감싸는 Container이고 초록색은 테이블의 Row를 표현한다. 프리젠테이션 부분은 상단의 Search Input, 하단의 Row들이 된다. Angular2에서 검색을 위한 Input과 Button, Title 애플리케이션을 다음과 같이 진행한다.



Seach The Site 레이블을 표현하는 컴포넌트를 개발한다.  @은 Typescript의 Decorator를 이용해 Angular2에 구현된 것으로 Parent -> Child 방향으로 DOM Properties를 통해 값을 받고자 할 때 사용한다. 즉, RangleLabel 컴포넌트를 사용하는 Parent 컴포넌트가 name 속성에 [] 을 이용해 값을 설정한다.

  - 컴포넌트를 사용할 때 [name]="<expression>"  [name] 부분을 target이라 하고 <expression> 부분을 source라고 한다.

  - []을 사용할 때 source는 항상 template expression 즉, 식이어야 한다. (statement "문"은 이벤트에서 사용함)

  - target에 []가 있으면 source는 항상 expression으로 수행된다.

import { Component, Input } from 'angular2/core';


@Component({

  selector: 'rangle-label',

  template: '<label class="rangle-label">{{ name }}</label>',

  styles: [ `

    .rangle-label {

      color: #422D3F;

      display: block;

      font-weight: bold;

      letter-spacing: .2em;

      text-transform: uppercase;

    }

  `]

})

export class RangleLabel {

  @Input() private name: string;

}


예) 부모 컨테이너에서 사용할 때: 부모 컨테이너 컴포넌트의 name 속성을 자식 컴포넌트인 rangle-label에 내려보낸다.

     <rangle-label [name]="name"></rangle-label>


다음으로 Input 컴포넌트를 만든다. value 속성에 대해 ngModel처럼 양방향 바인딩을 주기 위해서는 컨벤션(Convention)처럼 Input은 value이고, Output은 valueChange이어야 한다.

  - [()] 표식은 banana in the box 표현으로 양방향 데이터 바인딩이다.

  - [] 은 Input으로 parent -> child로 속성값을 내려 보낼 수 있다. (top down)

  - () 은 Output으로 child -> parent로 값을 올려 보낼 수 있다. (bubble up)

import { Component, Input, Output, EventEmitter } from 'angular2/core';


@Component({

  selector: 'rangle-text-field',

  template: `

    <input class="rangle-text-field"

      [placeholder]="placeholder"

      #field (keyup)="handleKeyup(field.value)">

  `,

  styles: [ `

    .rangle-text-field {

      border-radius: 3px;

      border: 1px solid #ccc;

      box-sizing: border-box;

      display: inline-block;

      font-size: inherit;

      font-weight: inherit;

      height: 2.5rem;

      padding: .5rem;

    }

  `]

})

export class RangleTextField {

  @Input() private placeholder: string;

  @Input() private value: String;

  @Output() private valueChange = new EventEmitter<String>();


  handleKeyup(fieldValue: string): void {

    this.valueChange.emit(fieldValue);

  }

}


예) 부모 컨테이너에서 사용할 때 searchTerm은 부모 컨테이너 컴포넌트의 속성이다. value를 내려보내기도 하고, 이벤트를 받기도 한다.

      <rangle-text-field

        placeholder="Enter Keyword"

        [(value)]="searchTerm">

      </rangle-text-field>


버튼을 만들어 보자. 템플릿의 target=source 에서 target이 ()로 감싸지면 이벤트를 나타내고 source는 statement "문"을 쓴다. expression과 statement에 대한 이해는 Angular.io의 Template Syntax 설명을 참조한다.  여기서는 클릭이 되면 바로 부모의 handleSearch가 호출된다.

import { Component, Input, Output, EventEmitter } from 'angular2/core'


@Component({

  selector: 'rangle-button',

  template: `

    <button

      [ngClass]="dynamicStyles()"

      class="rangle-button"

      (click)="onClick.emit()">

      {{ name }}

    </button>

  `,

  styles: [ `

    :host {

      display: flex;

      align-items: stretch;

    }

    .rangle-button {

      border: none;

      border-radius: 3px;

      color: white;

      font-weight: bold;

      letter-spacing: .2em;

      margin-left: 0.5rem;

      padding: 0.5rem;

      text-transform: uppercase;

    }

    .primary {

      background: #E5373A;

    }

    .normal {

      background: #422D3F;

    }

  `]

})

export class RangleButton {

  @Input() name: string;

  @Input() isPrimary: boolean;

  @Output() onClick = new EventEmitter();


  dynamicStyles() {

    return this.isPrimary ? 'primary' : 'normal';

  }

}


예) 부모 컨테이너 컴포넌트에서 사용할 때, handleSearch는 부모 컨테이너 컴포넌트의 메소드이다.

      <rangle-button name="Search"

           [isPrimary]="true"

           (click)="handleSearch(searchTerm)">

      </rangle-button>


다음으로 Input 과 Button 컴포넌트를 재사용할 수 있는 컨테이너를 만들어 본다. Label만을 포함하고 있고 언제는 원하는 형태로 Input과 Button을 템플릿상에 포함 시킬 수 있다. 이를 위해 ng-content 태그를 사용한다. Angular v1의 transclude와 유사하다. 하지만 큰 차이점은 역시 Angular2의 컴포넌트 아키텍쳐는 Comopnent Tree이기 때문에 Change Detection(CD)는 항시 가장 위에서 아래로 점검되고 렌더링된다. Angular v1은 parent - child 관계가 있다하더라도 Parent가 먼저 렌더링 될지 Child가 먼저될지 보장을 못했다. (물론 Directive에 priority 옵션이 있지만 적용하기에 따라 순서가 정확한지 알 수 없었다.) 즉, Angular2에서 ng-content 태그를 사용해도 렌더링에 예측이 가능하다.





import { Component, Input } from 'angular2/core';

import { RangleLabel } from './rangle-label';


@Component({

  selector: 'rangle-bar',

  directives: [ RangleLabel ],

  template: `

    <rangle-label [name]="name">

    </rangle-label>

    <div class="row">

      <ng-content></ng-content>

    </div>

  `,

  styles: [`

    :host {

      background: #F8F8F8;

      border: solid #ccc 1px;

      display: block;

      padding: 1rem;

      margin: 1rem;

    }

    .row {

      display: flex;

      margin-top: 0.5rem;

    }

  `]

})

export class RangleBar {

  @Input() name: string;

}


예) 부모 컨테이너 컴포넌트 사용 때

    input과 button이 있는 경우
    <rangle-bar name="Search the site">
        <rangle-text-field placeholder="Enter Keyword"
             [(value)]="searchTerm">
        </rangle-text-field>
        <rangle-button name="Search"
            [isPrimary]="true"
            (click)="handleSearch(searchTerm)">
        </rangle-button>
    </rangle-bar>

    또는

   button만 있는 경우
   <rangle-bar name="Other Stuff">
        <rangle-button name="Button 1"
            [isPrimary]="true">
        </rangle-button>
        <rangle-button name="Button 2"></rangle-button>
        <rangle-button name="Button 3"></rangle-button>
    </rangle-bar>


당연히 <ng-content>에는 input, button 컴포넌트외에 다양한 컴포넌트가 올 수 있다. 결과는 다음과 같다.



실데이터를 요청하는 코드는 RangleBar 에서 XHR에 대한 요청을 하고 결과를 전달하는 과정을 거치면 될 된다. Redux를 사용한다면 Action Creator를 수행한다. 애플리케이션 소스를 보자. App 컴포넌트는 가장 최상위 애플리케이션으로 Container 컴포넌트와 Presentational 컴포넌트를 사용해 화면 레이아웃을 만들고 있다.

import { ViewEncapsulation, Component } from 'angular2/core';

import { RangleBar }  from './rangle-bar';

import { RangleButton } from './rangle-button';

import { RangleTextField } from './rangle-text-field';


@Component({

  selector: 'app',

  directives: [ RangleBar, RangleTextField, RangleButton ],

  template: `

    <rangle-bar name="Search the site">

      <rangle-text-field placeholder="Enter Keyword"

        [(value)]="searchTerm">

      </rangle-text-field>

      <rangle-button name="Search"

        [isPrimary]="true"

        (click)="handleSearch(searchTerm)">

      </rangle-button>

    </rangle-bar>


    <rangle-bar name="Other Stuff">

      <rangle-button name="Button 1"

        [isPrimary]="true">

      </rangle-button>

      <rangle-button name="Button 2"></rangle-button>

      <rangle-button name="Button 3"></rangle-button>

    </rangle-bar>

    <p> inside viewCapsulation </p>

  `,

  styles: [ 'p { background: red; border: dashed yellow 2px; }' ],

  encapsulation: ViewEncapsulation.Native

})

export class App {

  private searchTerm: string;


  handleSearch(searchTerm: string): void {

    alert(`You searched for '${searchTerm}'`);

  }

}


GistRun의 소스와 Rangle.io 동영상을 참조하자.

  - Container & Presentational Component 개발 방식에 대한 소개

  - Component LifeCycle에 대한 소개: ng-content를 특별히 View Content라 하고, 그외 템플릿에 직접 설정된 컴포넌트를 View Child라 한다. Life Cycle에서는 둘의 시점이 나뉘어져 있다. View Content가 먼저 호출된다.

  - ElementRef 주입받아 컴포넌트의 DOM을 사용할 수 있다.





<참조>



  - Angular2 Component Basic (pptsrc)- Rangle.io

  - Thinking in React

  - Presentational and Container Component - Dan Abramov

  - Rangle.io's Angular2 GitBook

  - Change Detection Reinvented - Victor Savkin's

posted by 윤영식
prev 1 2 next
